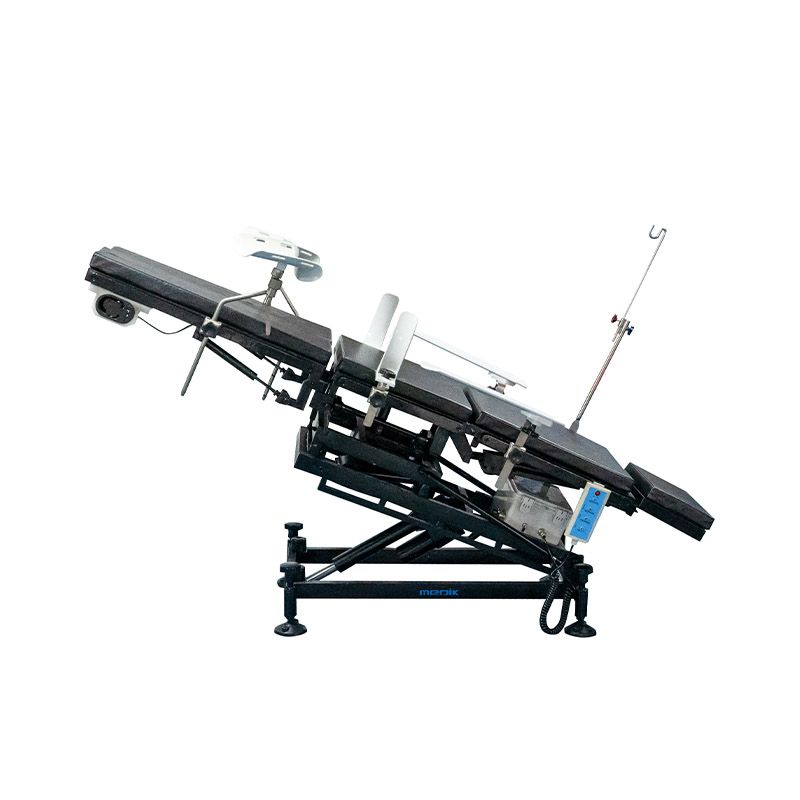

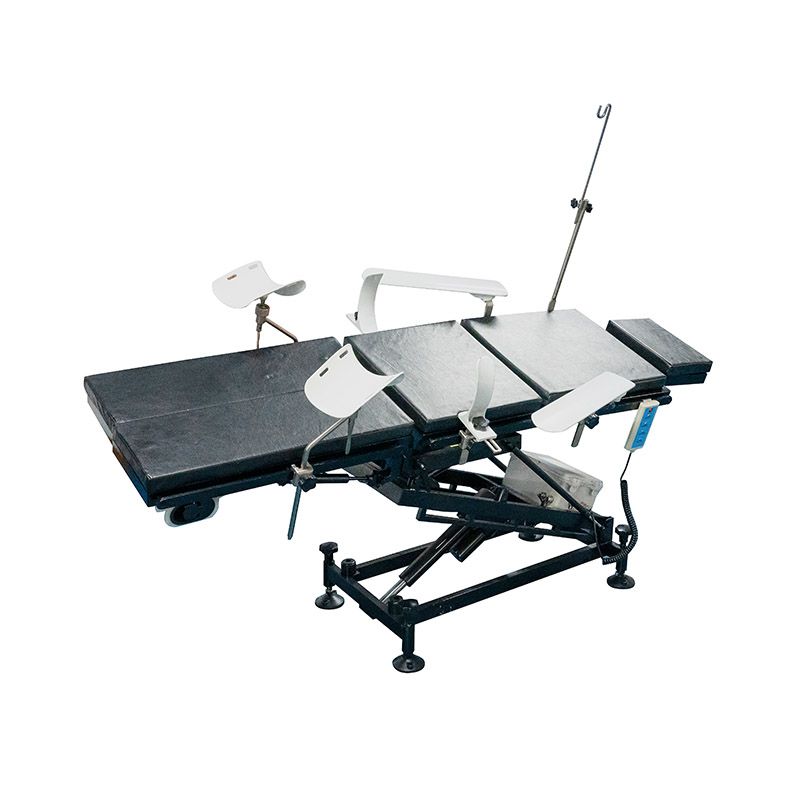

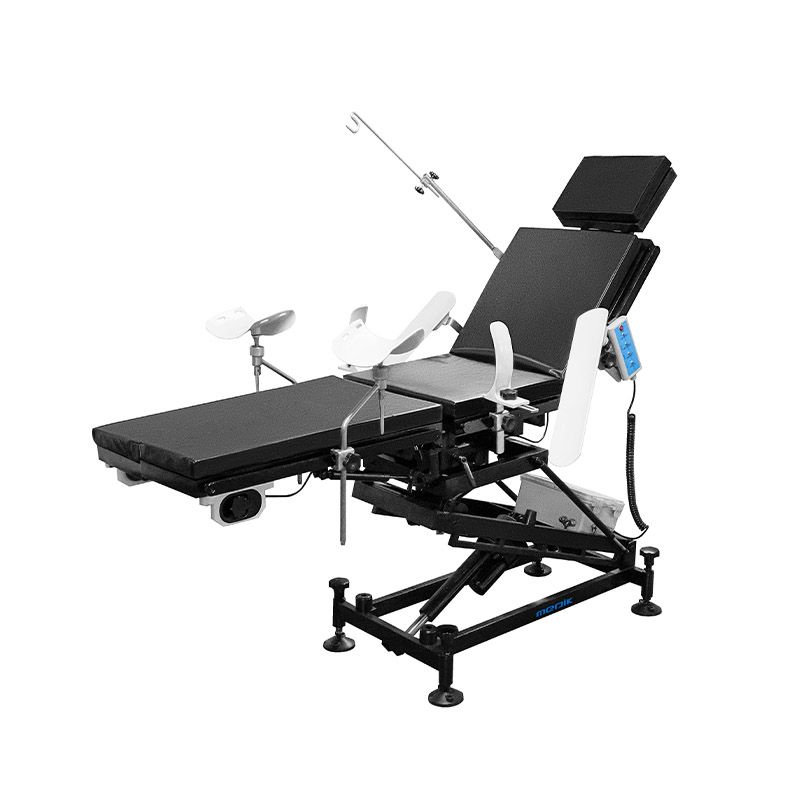

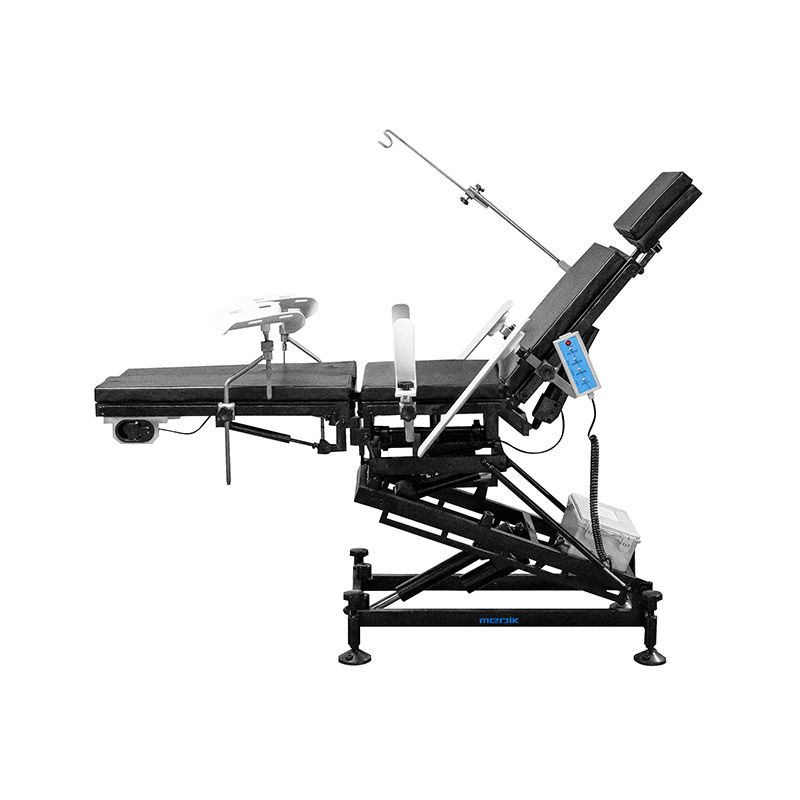

YA-03F Electric Portable Field Surgical Table
YA-03F Electric Portable Field Surgical Table
YA-03F Electric Portable Field Surgical Table
YA-03F Electric Portable Field Surgical Table
YA-03F Electric Portable Field Surgical Table

Model: YA-03F

Unfolded size:1980mm*470mm*(515mm~1050mm)

Folded size: 960mm*550mm*530mm

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


Minimized packing size and affordable carrying weight, necessary functions, all the features make the YA-03F electric operating table suitable for field operations like military or field rescue.

Main features

- Cold rolled steel with powder coating treatment

- Lightweight but stable design

- All operations via hand remote controller

- Detachable design for small and quick loading

- Suitable for field and special location application

Technical parameter

ModelYA-03F
Unfolded size1980mm*470mm*(515mm~1050mm)
Folded size960mm*550mm*530mm
Headboard+37 / -90 degree
Backboard-18 / +82 degree
Leg board-31 / +56 degree
Lying surface1980mmX470mm
Tren / Reverse Tren position≥15 / 15 degree
Left and right tilt≥15 / 15 degree
Height adjustment range550mm~1050mm
Loading Weight≥135kg
AccessoriesMattress, Arm support, Leg support, Body support, Carrying box, Anesthesia screen holder
Surgical table N.W≤75kg



//
