Brand: Medik

Model: YA-01F

Certificate: CE/ ISO

Overall Size: 1980*480*700mm

Function: Back section, Foot section, HI-LOW, and Trendelenburg and Reverse, Lateral tilt

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

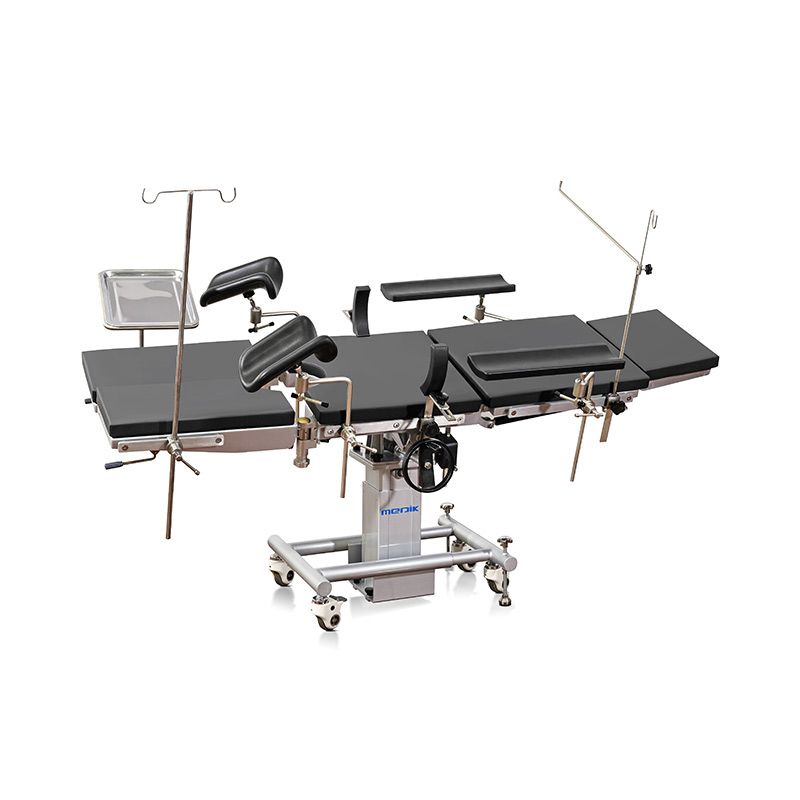

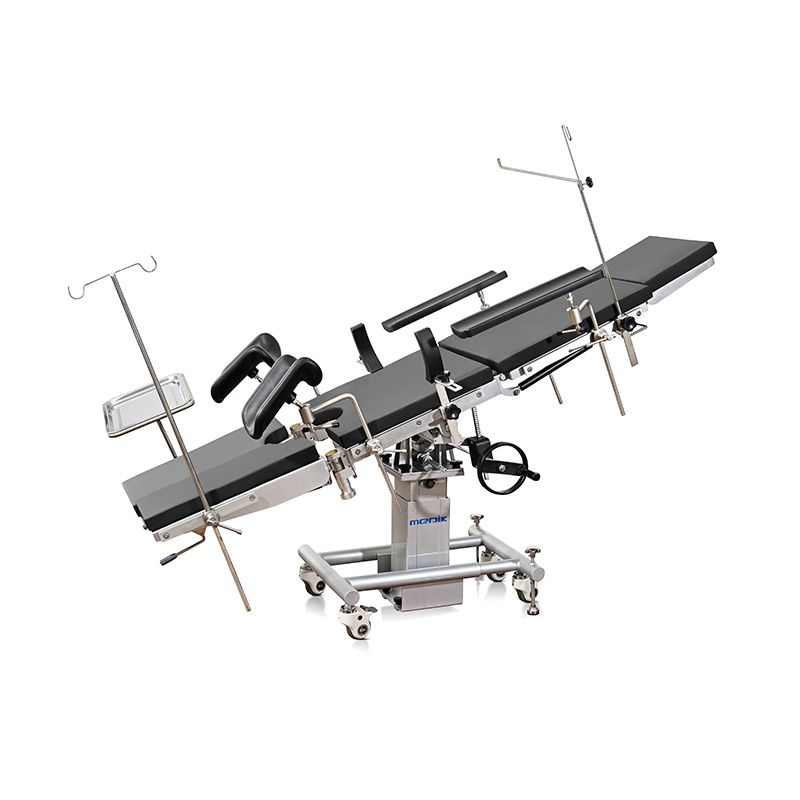

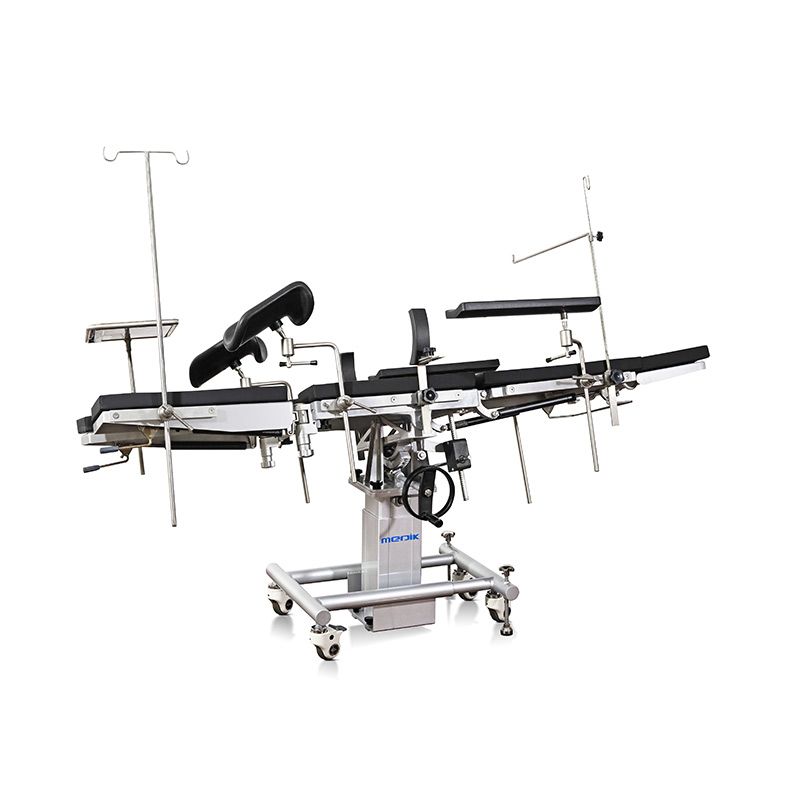

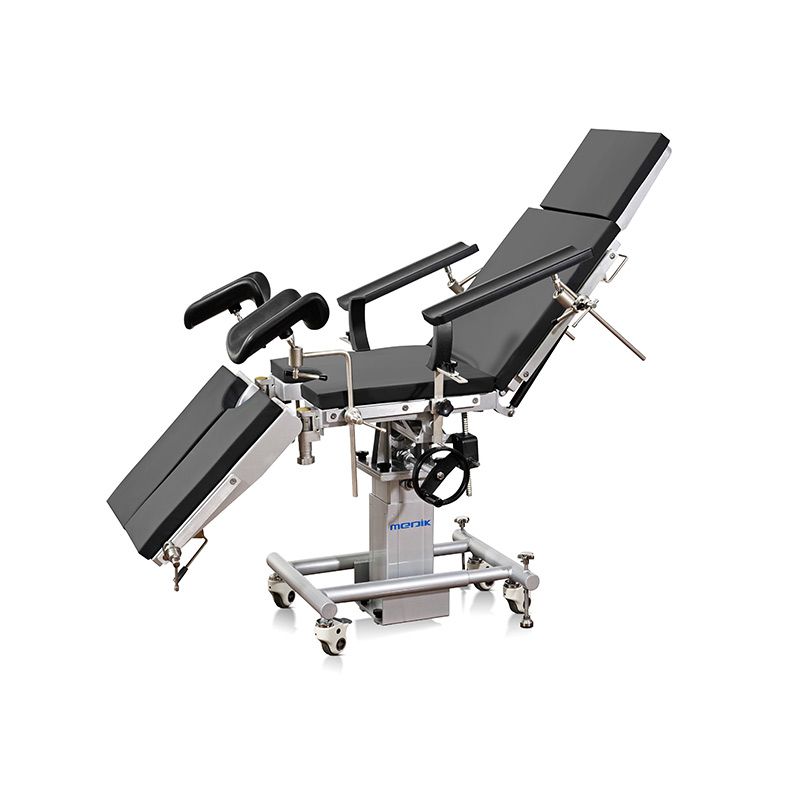

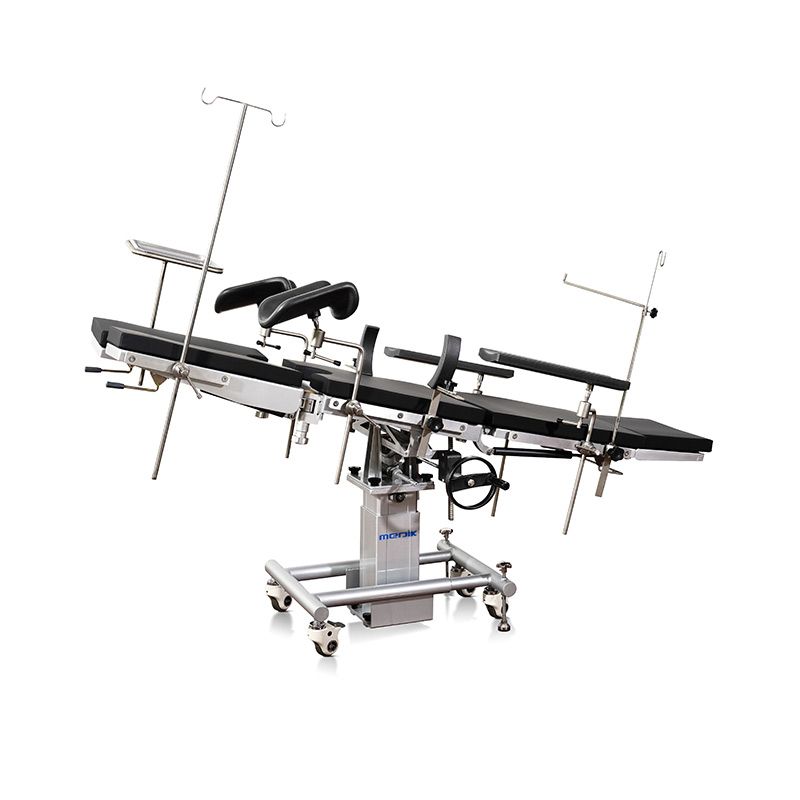

The YA-01F Field operating table is based on a knock-down design, it is made of lightweight high quality raw material only 51.6kg. All the functions can be operated by mechanical operation easily. It will help doctors to adjust to different positions shortly and be stable.

Main features

- The table base equip with 4 pcs swivel type castors, so the table can be moved quickly via the wheels.

- Meanwhile, there is extra position fix support to guarantee table stability during surgery treatment.

- The table including the accessories can be packed into a small carrying box size of only 800*600*600mm and a gross weight of only 75kg.

 - It can be transferred easily and can be installed for use within a few minutes when emergency treatment.

Technical parameter

ModelYA-01F
Table size1980*480*700mm
Table weight51.6kg
Safe loading weight135kg
Table height range700-900mm (±10mm), not include mattress height
Headboard adjustmentUp 30°, Down 90°
Backboard adjustmentUp 80°, Down 20°
Leg board adjustmentUp 0°, Down 90°, Outward 90°
Tren/Reverse Tren22°/ 30°
Tilting24°/ 24°
Castors100mm, 2 with locking
MattressFoam mattress with water-proof cover, thickness 80mm
Ground tolerance adjustment range0-20mm
AccessoriesAnaesthesia screen holder * 1pcsHand support * 1pcsBody support * 2pcsLeg support * 2pcsMayo tray * 1pcsIV stand * 1 pcs
Carrying box size800*600*600mm
Carrying box weight75kg (including surgical table weight)
