Brand: Medik
Model: YA-11E
Overall size: 2150*550*720-1070mm
Loading capacity: 275kg
Certificate: CE/ISO
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

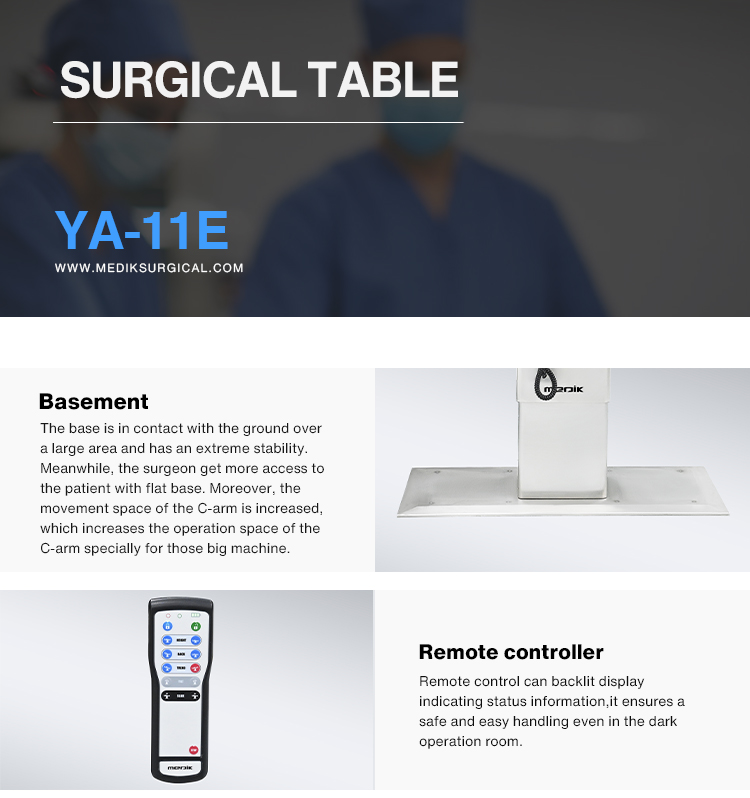

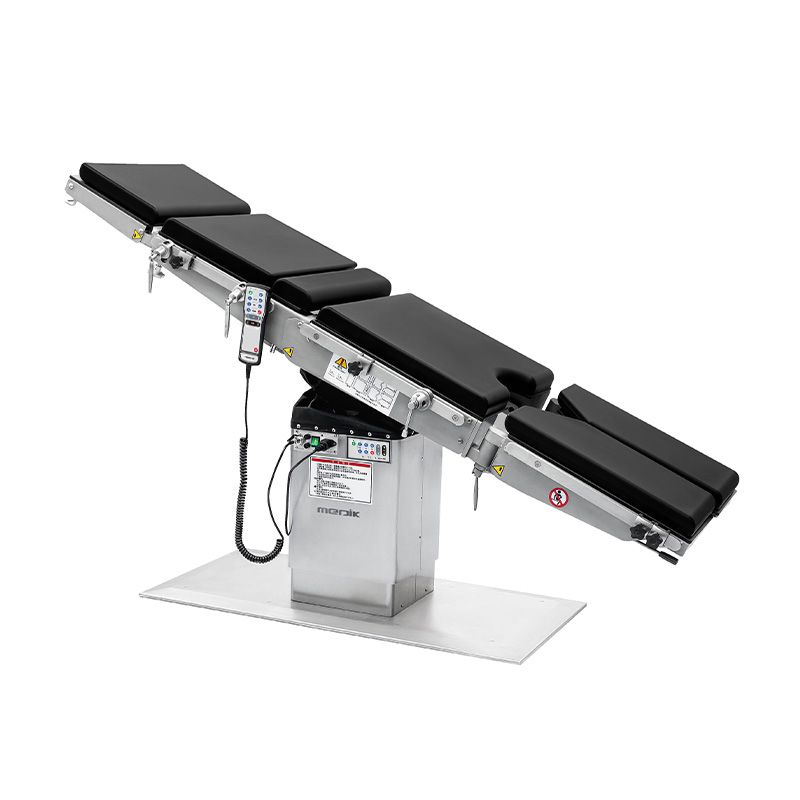

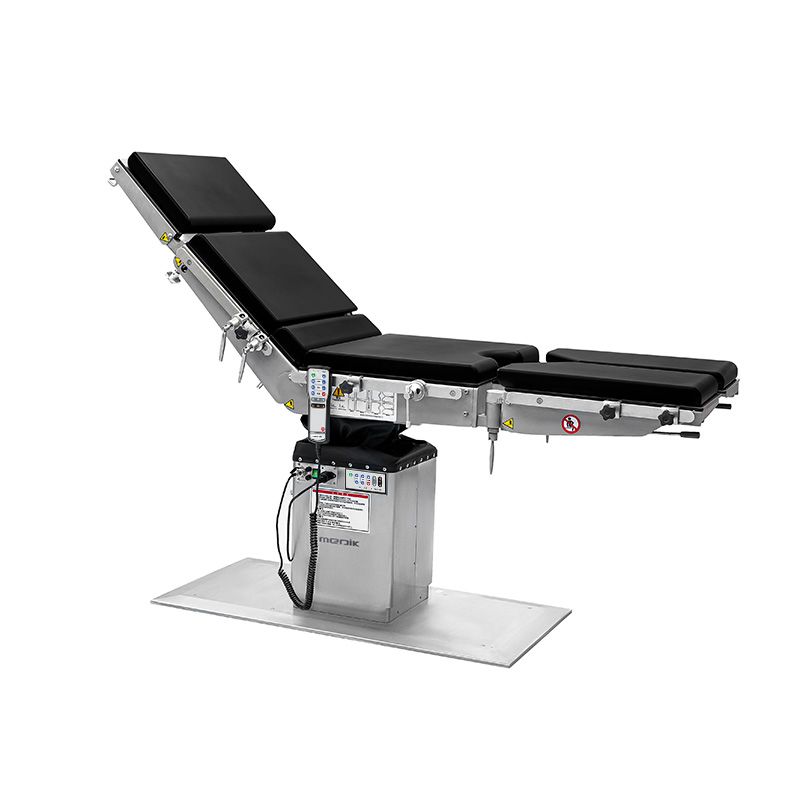

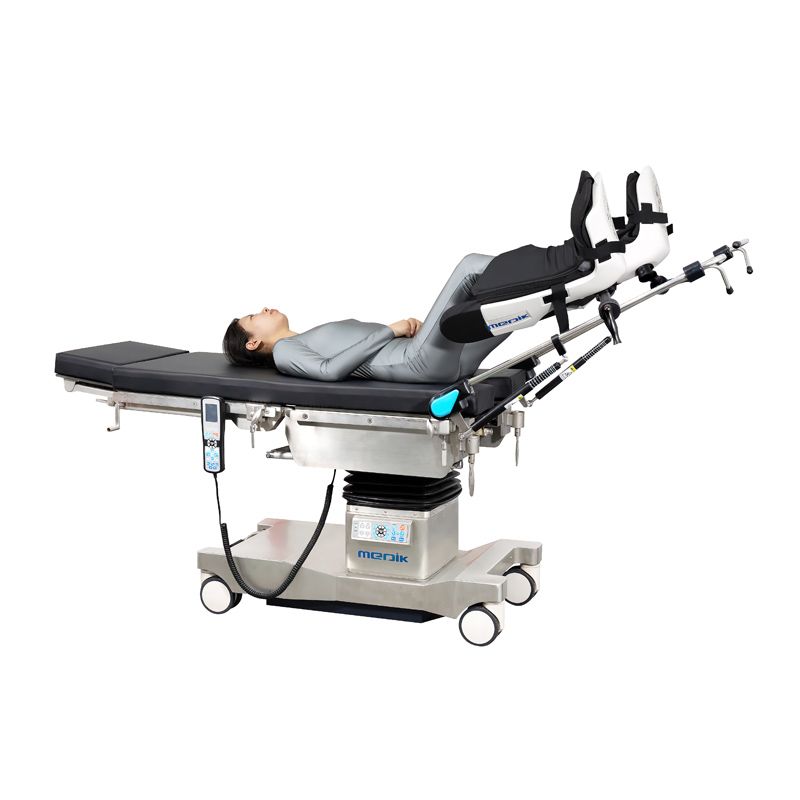

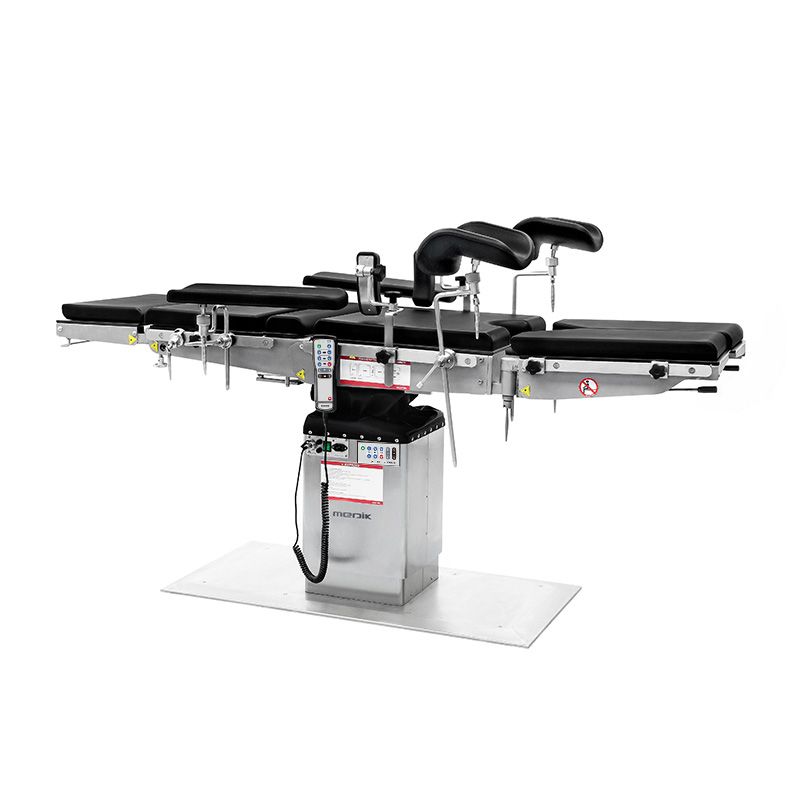

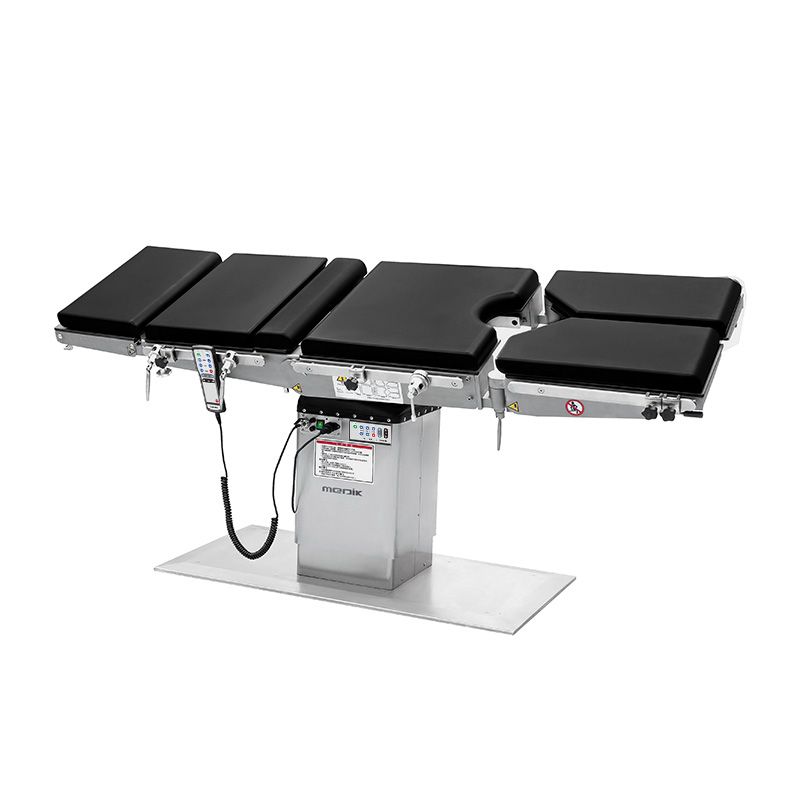

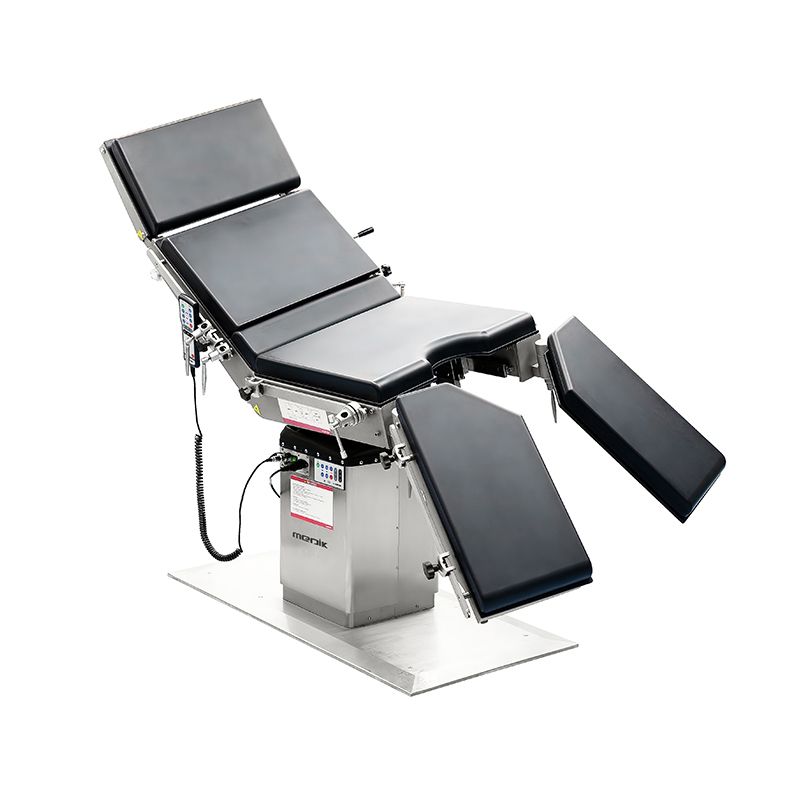

Extreme flattened base, easy-to-clean whole frame, YA-11E with unique features is a new generation surgical table designed to have better stability, more access for the surgeon to the patient, wider space for C-arm operation, etc.
Main features
- The contact area between the base and the ground is large and the stability is extremely strong.
- AISI304 stainless steel construction and chassis, easy to clean
- Polyurethane-shaped mattress, easy to remove and clean
- With horizontal and vertical movement, used for C-arm photography inspection

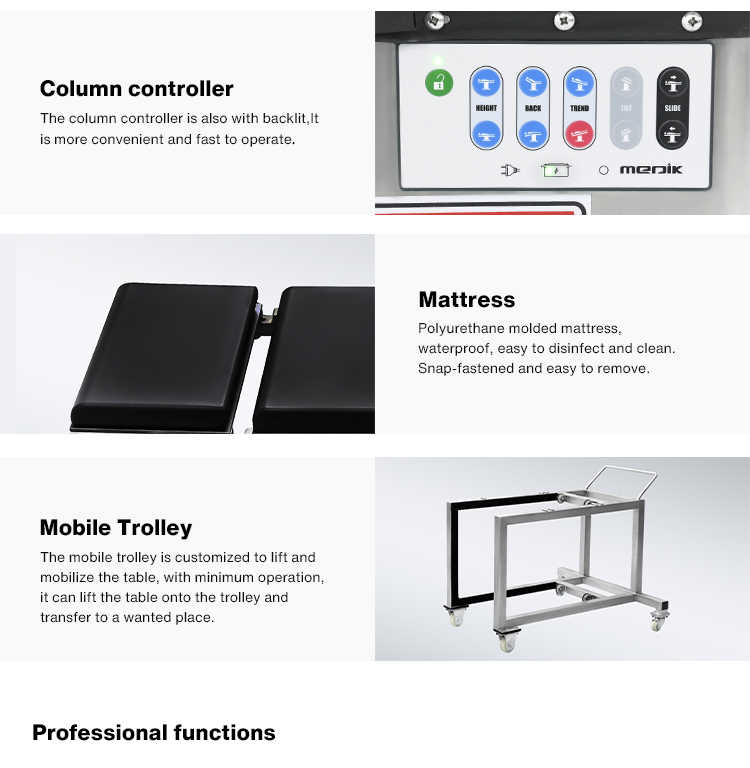

- Lateral control system integrated into the side column with motion blocking system
- Gas spring for adjusting movements of the headrest section
- Equipped with a trolley to move the operating table
Technical parameter
| Model | YA-11E |
| Table Length | 2150mm( 84.5" ) |
| Table Width | 550mm( 21.5" ) |

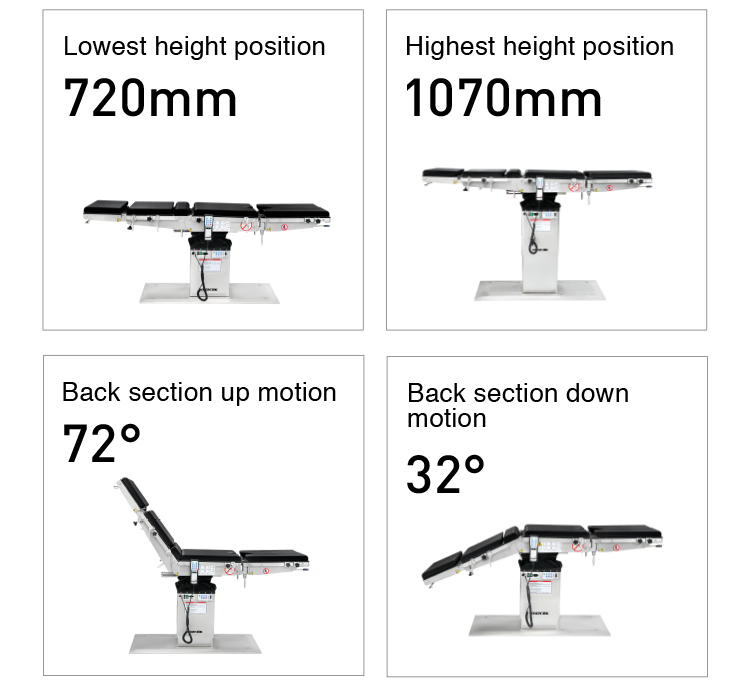

| Table Height Range | 720-1070mm( 28"~42" ) |
| Back section up/down | 72°/32° |

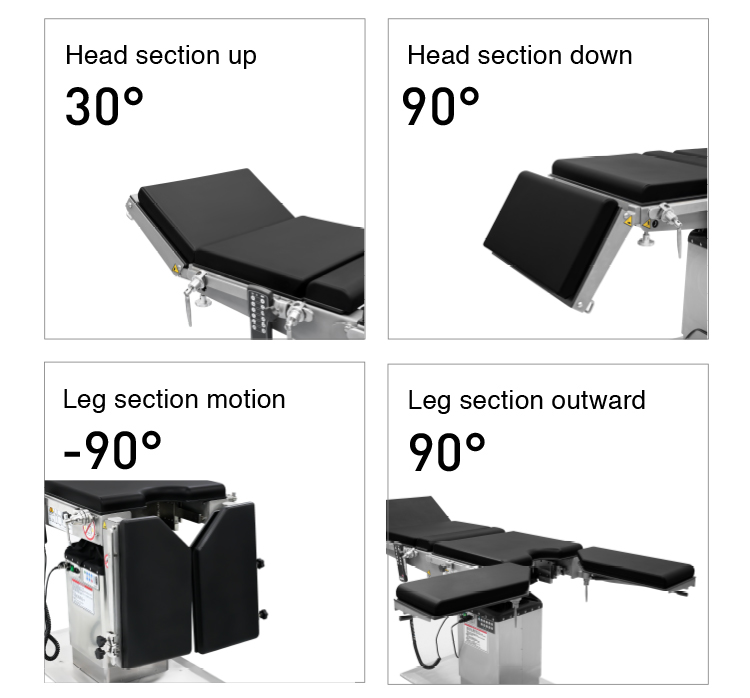

| Head section up/down | 30°/90° |
| Leg section down | 90° |

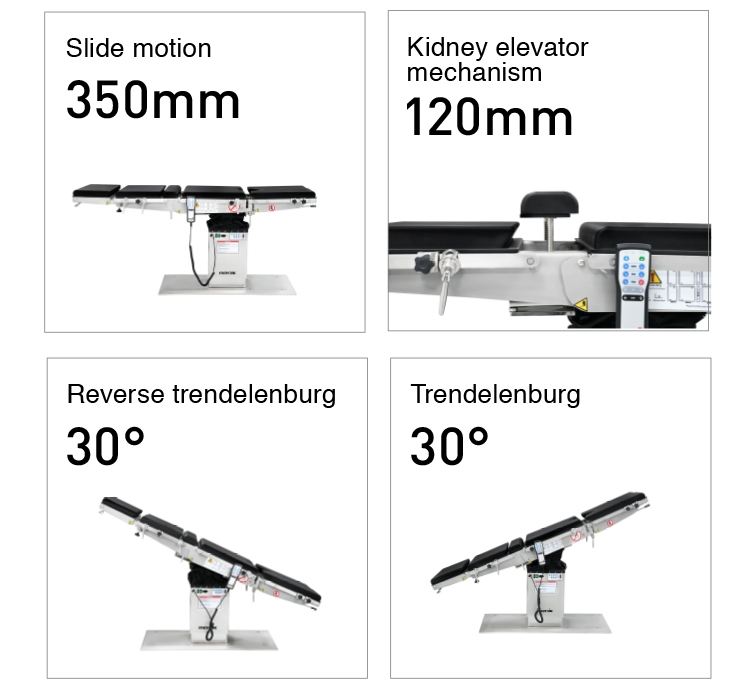

| Reverse trendelenburg | 25° |
| Trendelenburg | 25° |

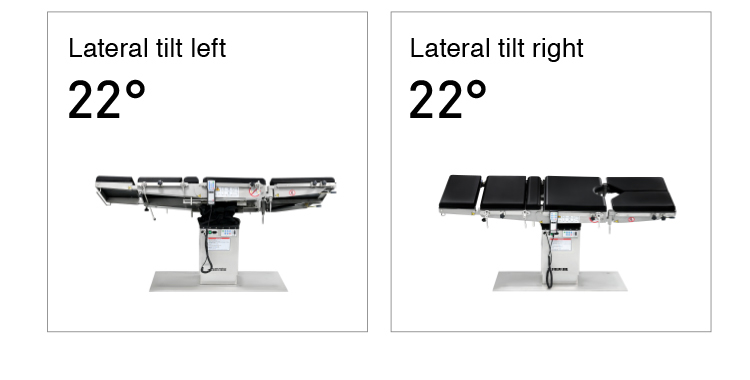

| Lateral tilt left/right | 22° |
| Slide motion | 300mm ( 12") |
| Kidney elevator mechanism | 120mm ( 5") |
| Load capacity | 275kg (600lb) |
Standard accessory
Mattress 1set
Anesthesia screen 1piece
Shoulder support 1pair
Arm board 1pair
Body support 1pair
Leg support 1pair
Foot plate 1pair
Kidney bridge handle 1piece
Hand remote 1piece

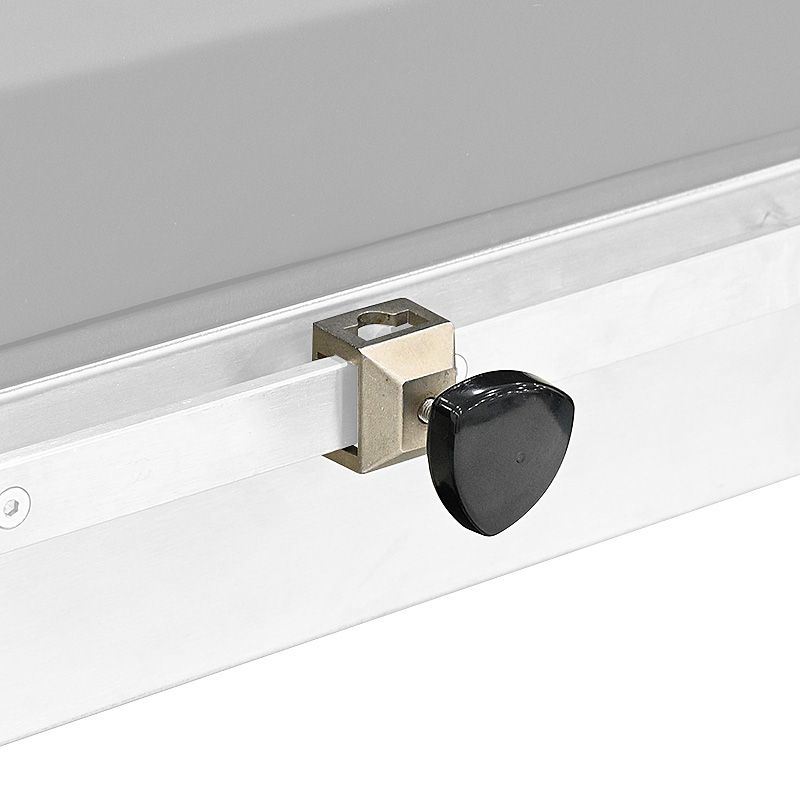

Fixing clamp 8pieces
