Brand: Medik
Model: YA-02M
Certificate: CE/ ISO
Overall Size: 2000*520*710-960mm
Loading Capacity: 200kg

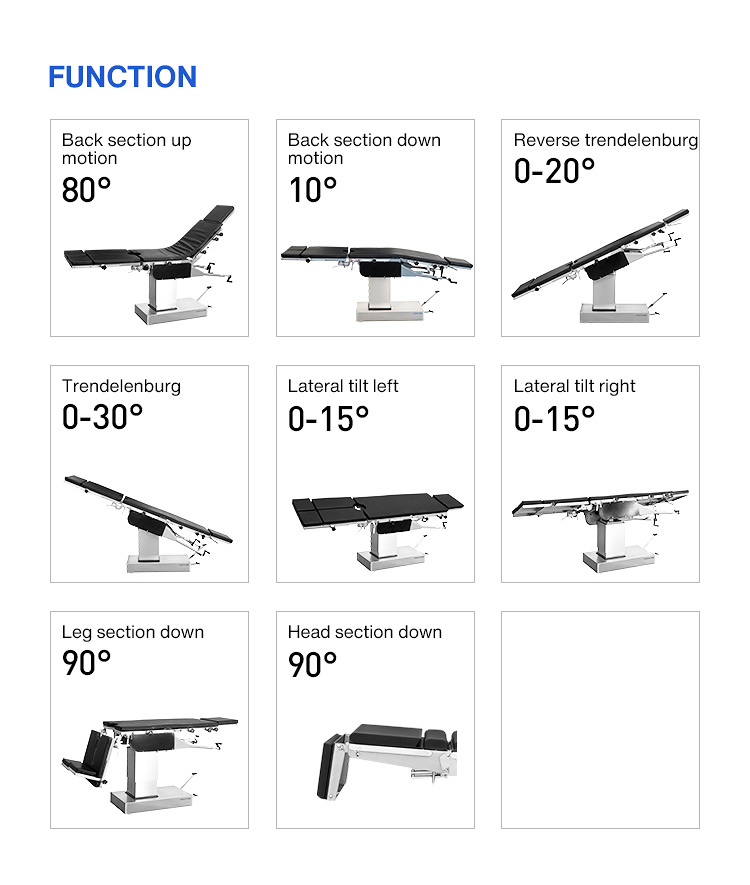

Function: Back section, Foot section, HI-LOW, and Trendelenburg and Reverse, Lateral tilt
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts
This Hydraulic Operation Table provides simple and effective manipulation to enhance the great access between the operator and the C-arm and the table while ensuring patient safety and comfort. All operations are controlled by the head-end control and thus avoid interfering with the surgical procedures. This series of products are very cost-effective.
Main Features:
- Mechanical operating table with dual-deck radiolucent tops for x-ray film cassette insertion

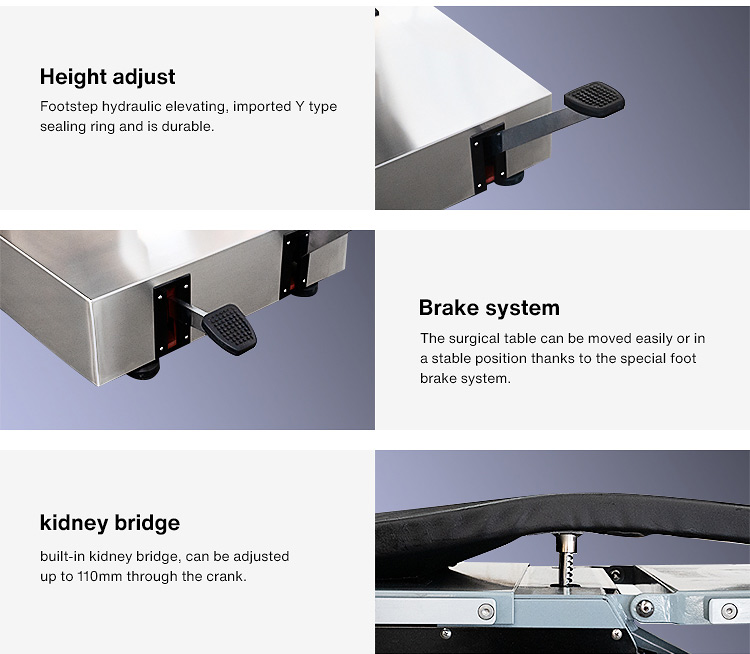

- Up and Down positioning of this universal surgery table is accessed by foot pedal operated hydraulic pump
- Operating tabletop is divided into 5 sections providing numerous positions
- Detachable head section and detachable leg sections provide versatility

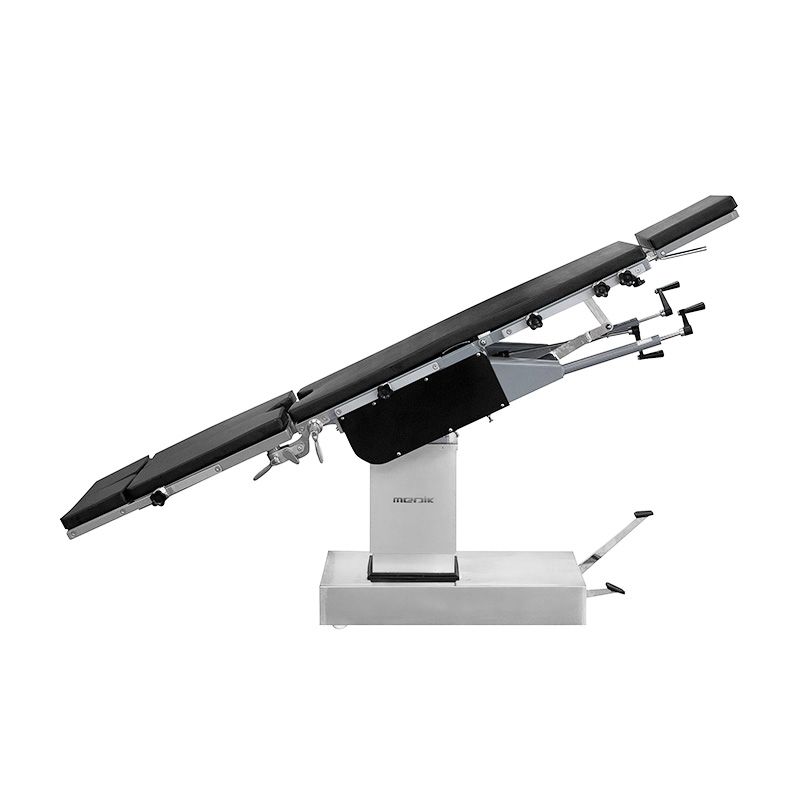

- Trendelenburg, Reverse-trendelenburg and Lateral tilt positions are obtained by cranks situated under the back section
- Integrated kidney elevator on the side of the operating table

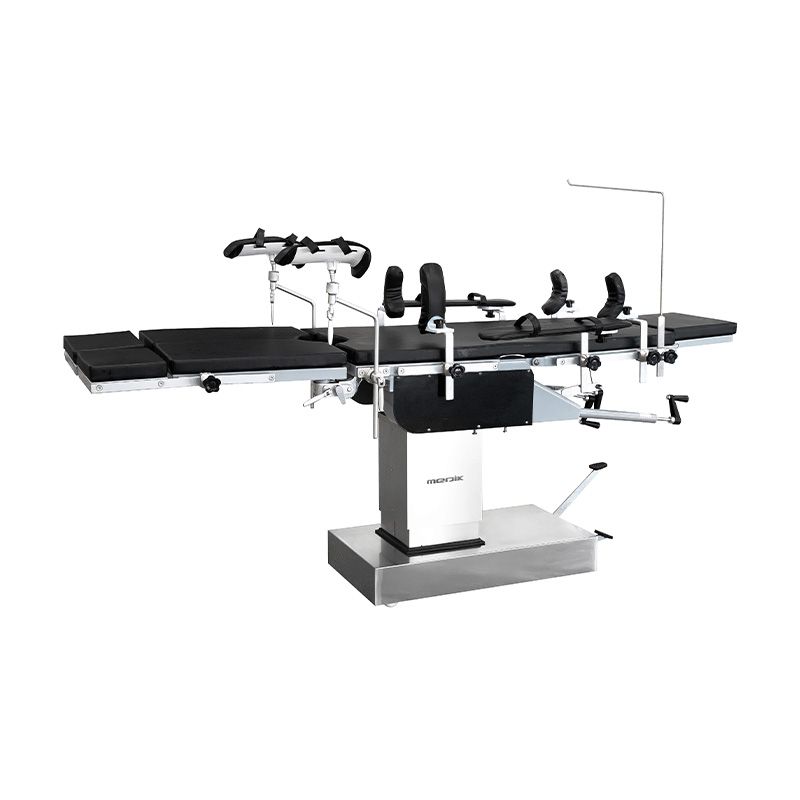

Accessories
- Anaesthesia screen
- Shoulder support
- Body support
- Arm support
- Leg support
- Foot section
Technical Parameter
Model | YA-02M |
Table Length | 2000mm ( 78.7") |
Table Width | 520mm ( 20.5") |
Table Height Range | 710-960mm (28" ~ 37.7") |
Head section up/down | 45°/90° |
Back section up/down | 80°/10° |
Leg section up/down | 15°/90° |
Leg section outward | 90° |
Trendelenburg/ | 25° |
Reverse trendelenburg | 25° |
Lateral Tilt (left/right) | 20° / 20° |
kidney bridge | 110mm ( 4.3") |
Loading capacity | 200kg(440lb) |
