Brand: Medik
Model: YA-04M
Certificate: CE/ ISO
Overall Size: 2100*500*750-950mm
Loading Capacity: 200kg
Function: Back section, Foot section, HI-LOW, and Trendelenburg and Reverse, Lateral tilt
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

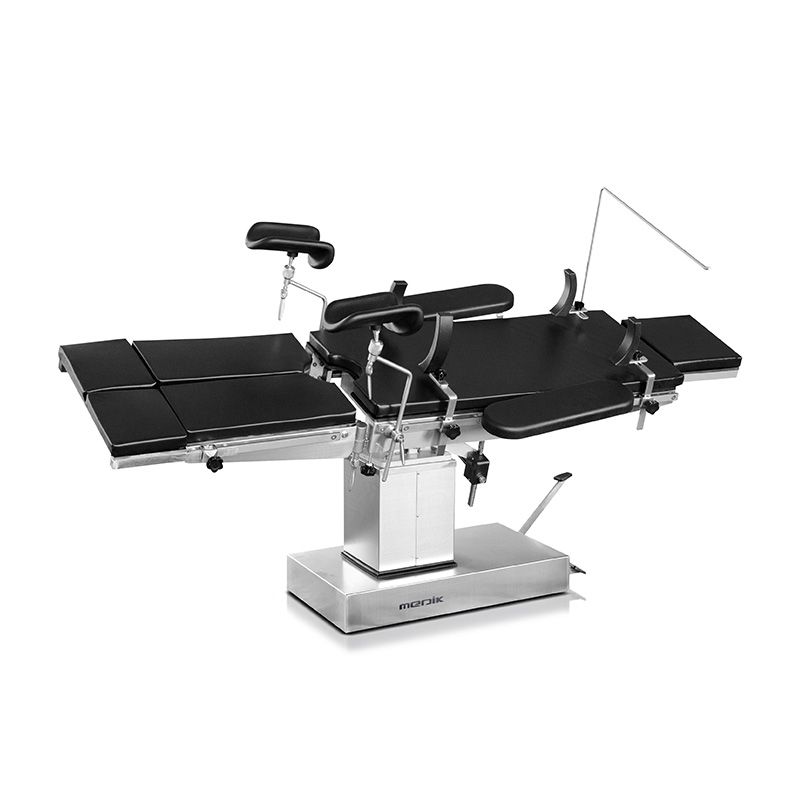

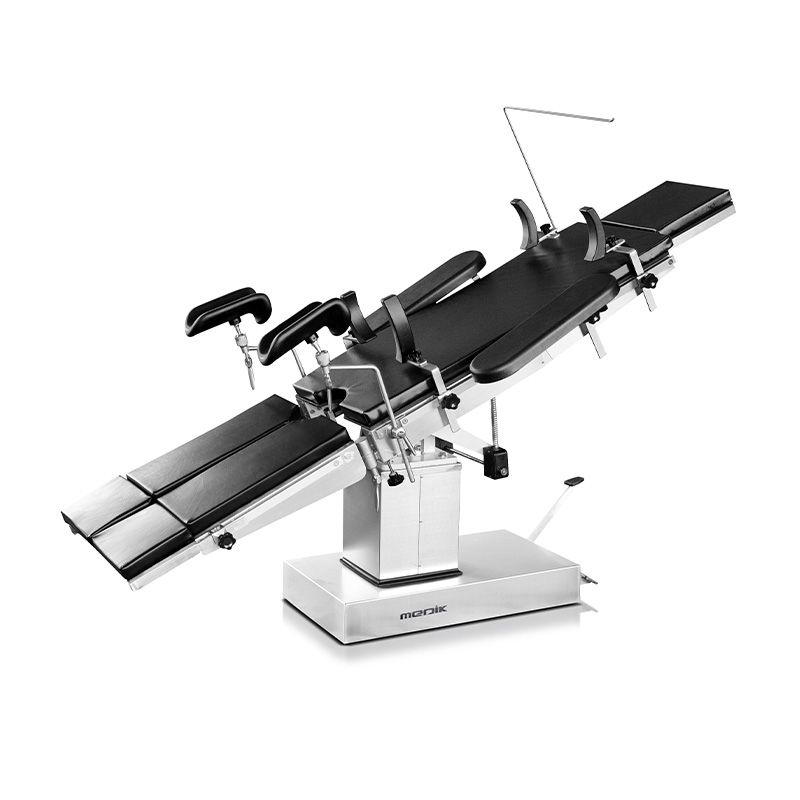

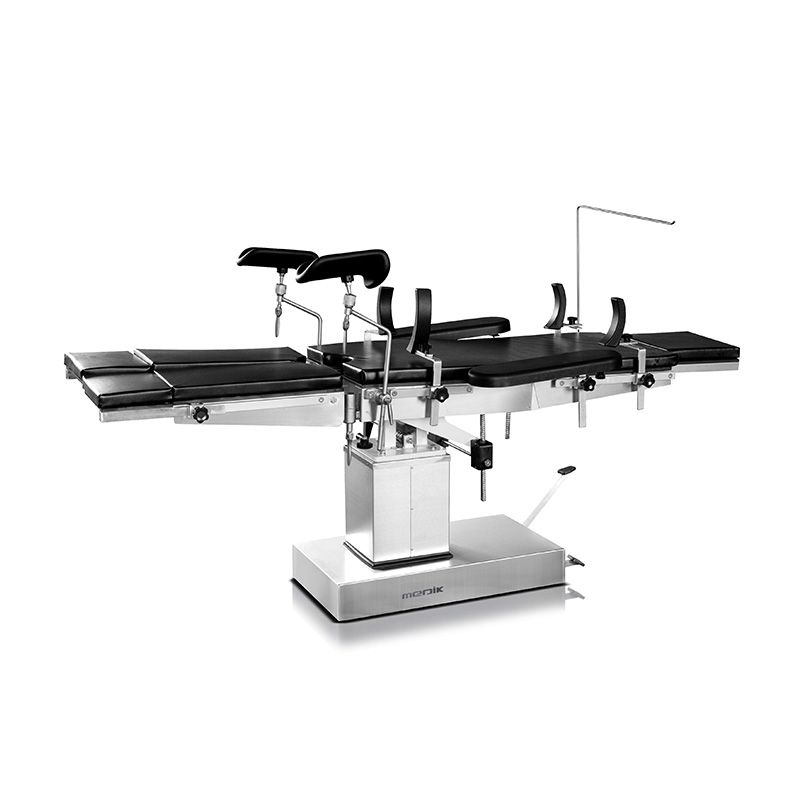

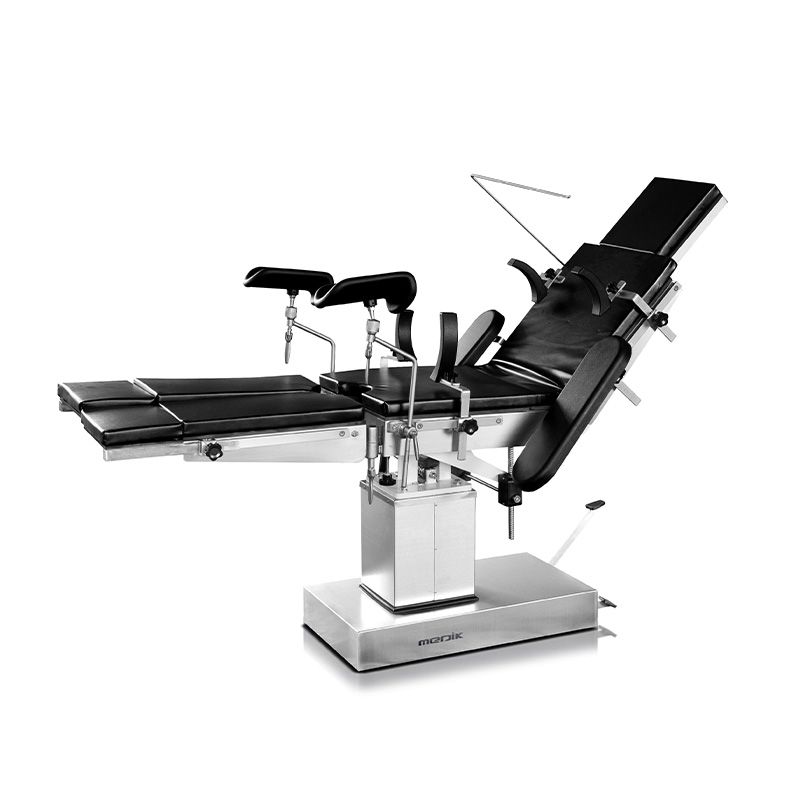

Mechanical operating table YA-04M is designed for a wide range of surgeries. It's equipped with a safe and reliable hydraulic system for height and section position adjustment. Stainless steel and durable cover are easy to clean and sterilize. This table has 5 main sections with a radiotransparent cover.
Features:
- Divided 6 sections of top plate with various patient positions for all kinds of general surgery
- Built-in kidney bridge
- Super SS frame and base anti-corrosion
- Table switchable from steady to mobile position via foot pedal control
- Height adjustable through a durable hydraulic pump
- Pneumatic control for various positions
- Double deck tabletop for X-ray cassette position
Technical Parameter
| Model | YA-04M |
| Table Length | 2100mm( 82.5" ) |
| Table Width | 500mm( 19.5" ) |
| Height adjustment | 750-950mm( 29.5"~37.5" ) |
| Head section adjustment | +30°to -90° |
| Back section adjustment | 0° to +60° |
| Leg section adjustment | 0° to -90° |
| Leg section outward | 90° |
| Trendelenburg/ | 20° |
| Reverse trendelenburg | 15° |
| Lateral Tilt (left/right) | 15° / 15° |
| Sliding | 400mm( 16" ) |
| kidney bridge | 100mm ( 4" ) |
| Loading capacity | 200kg(440lb) |
