YA-A604 Pediatric Lithotomy Stirrups
YA-A604 Pediatric Lithotomy Stirrups
YA-A604 Pediatric Lithotomy Stirrups
YA-A604 Pediatric Lithotomy Stirrups
YA-A604 Pediatric Lithotomy Stirrups

Brand: Medik

Model: YA-A604

Certificate: CE/ ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

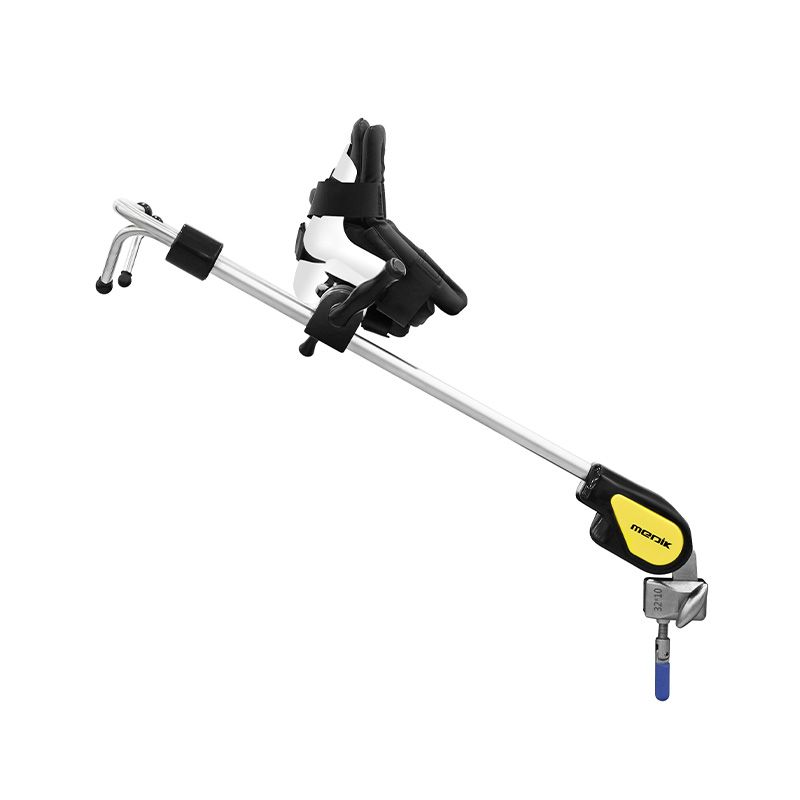

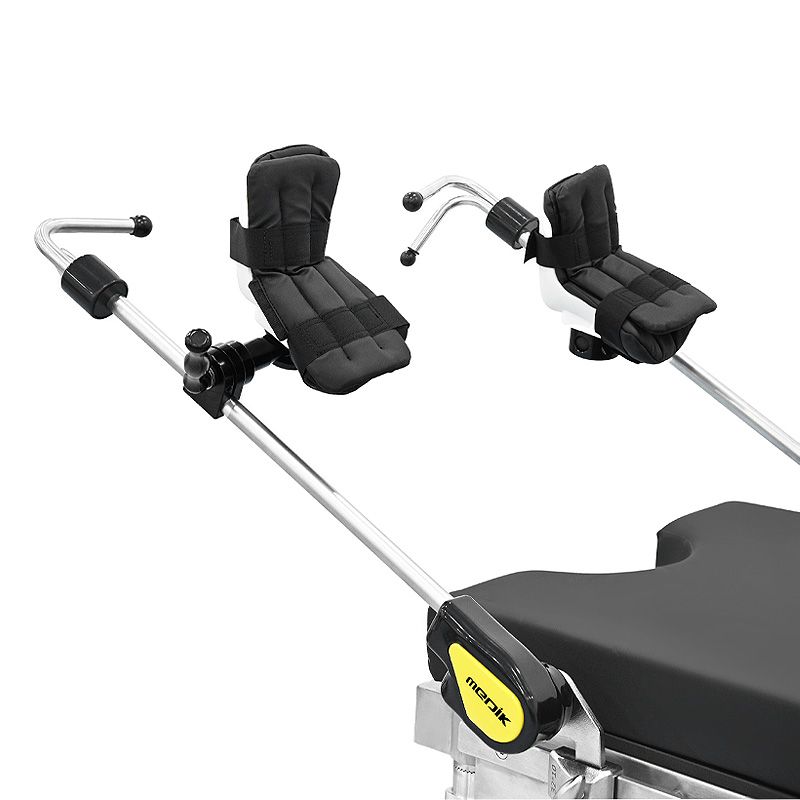

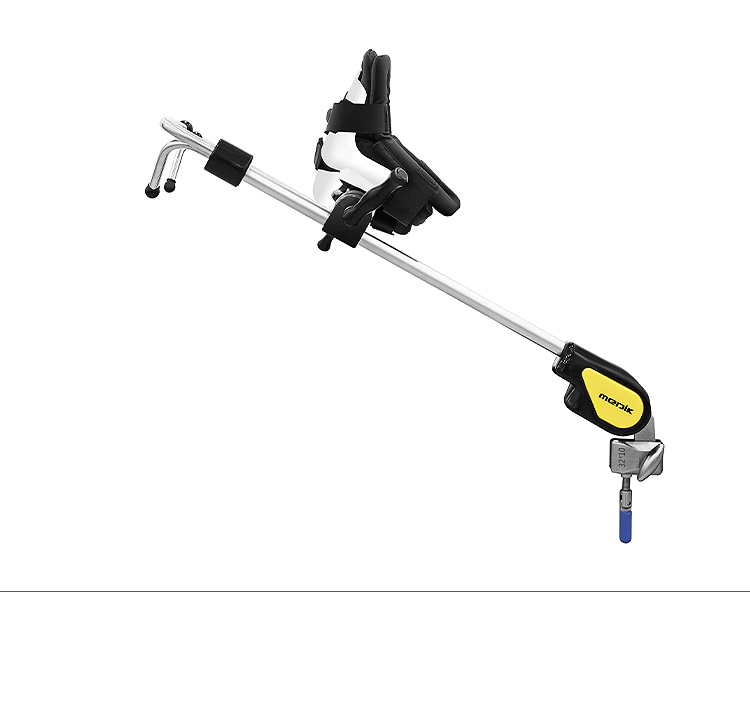

The YA-A604 lifting stirrup is specially designed for pediatric use. With the children's boot size, the stirrup can better protect the patient's feet, avoid complications, and improve comfort. The high-quality pneumatic adjustment system makes it more stable and better in lithotomy surgery.

Main features

● Suitable for children, can accurately locate various body positions required for lithotomy surgery.

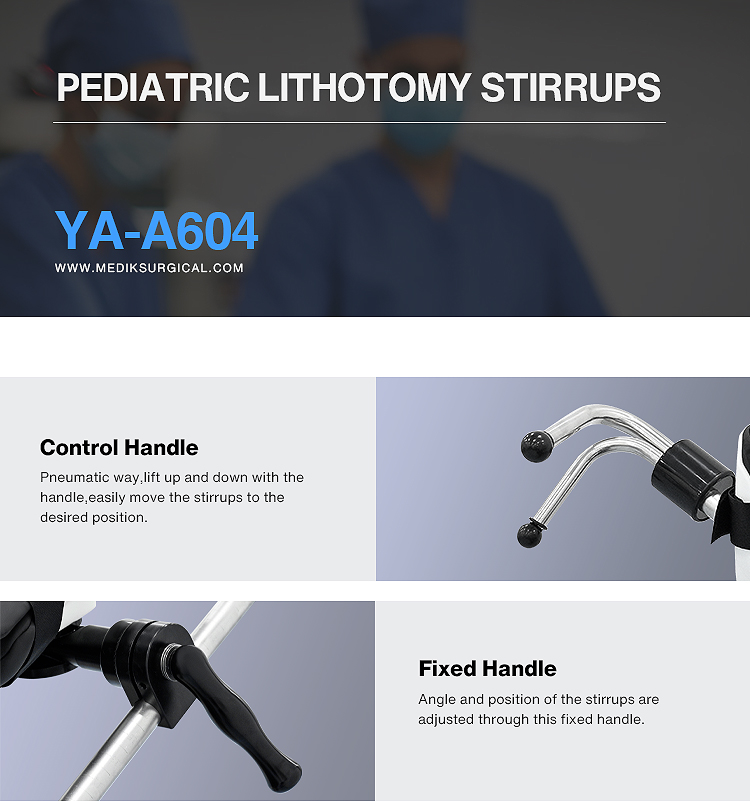

● The pneumatic operating system is light and flexible, reducing the workload of medical staff.

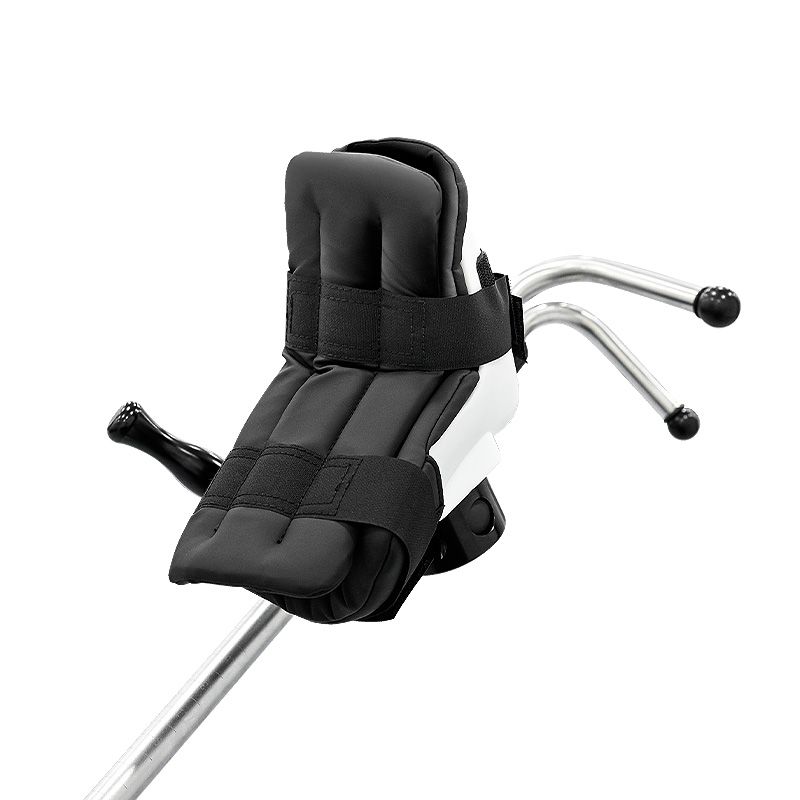

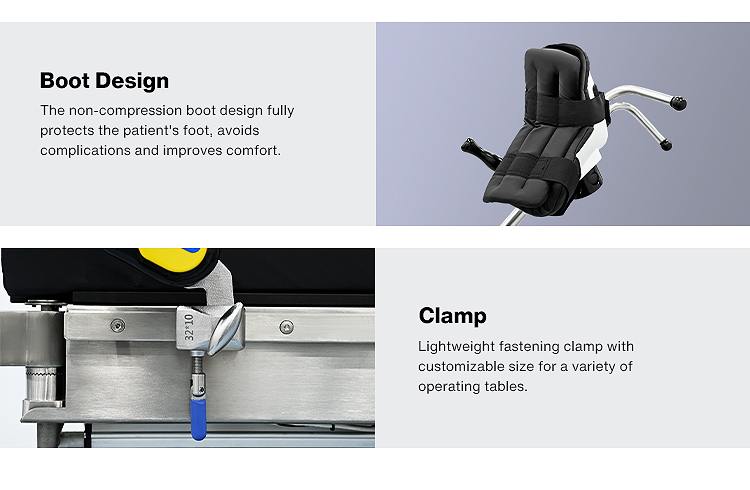

● The boot shaft design protects the patient's feet, improves patient comfort and avoids complications.

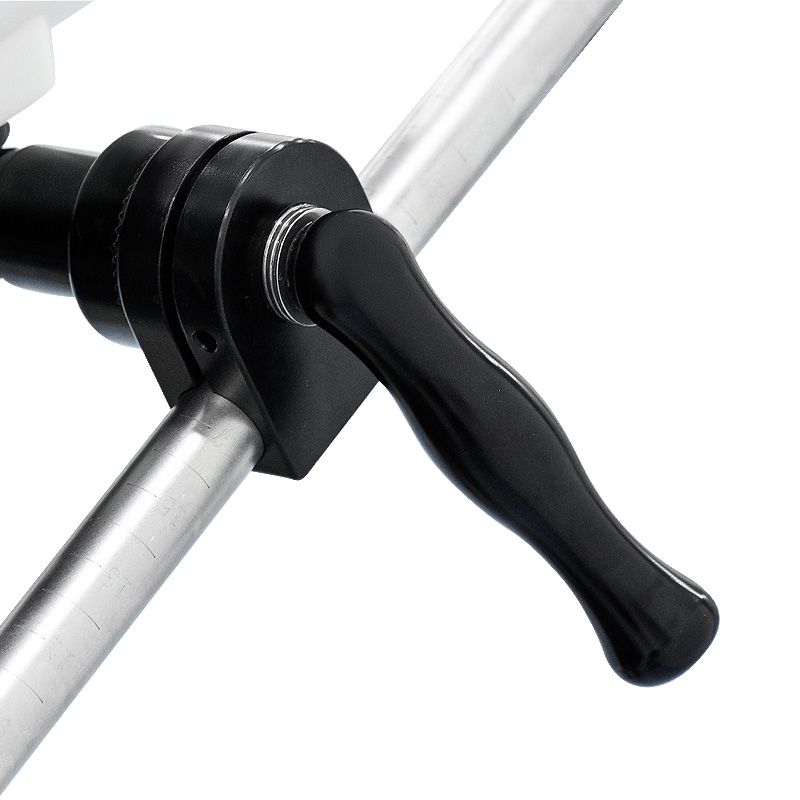

● The clamp is stable and durable, the size can be customized, and it is suitable for various operating tables.

Technical parameter

Cantilever Length80cm
Lift up and down90°/ -35°
Swing outward and interior30° / 15°
Telescopic distance of sheath475mm
Patient Weight Capacity150Kgs
Specifications of side rails of operating table to be applied on25*10mm /25*8mm /30*10mm /30*8mm /28.5*9.5mm
Product Weight3.75kgs


//
