Brand: Medik
Model: YA-B104
Certificate: CE/ ISO
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

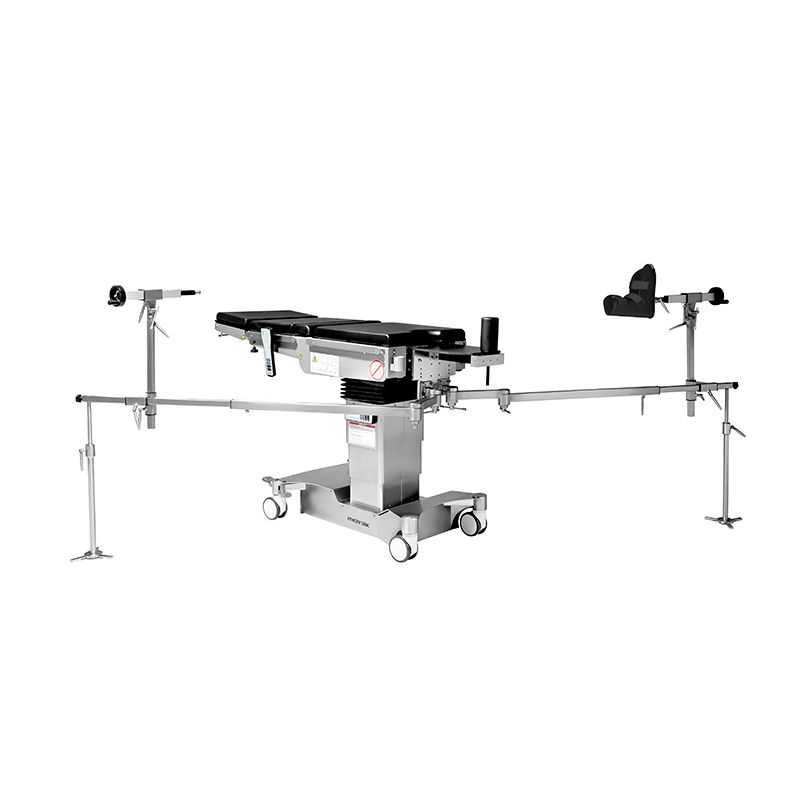

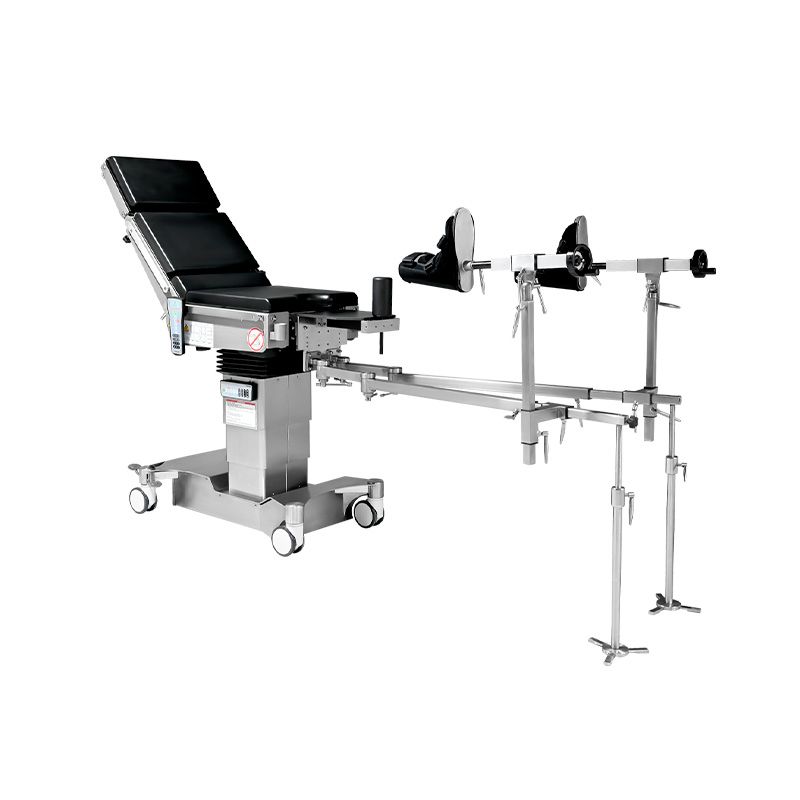

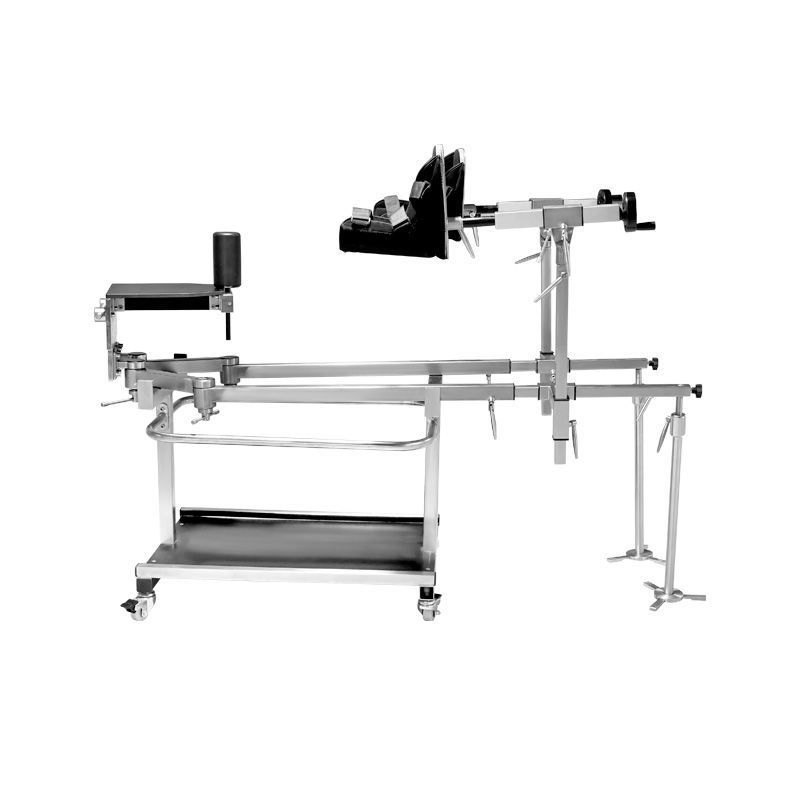

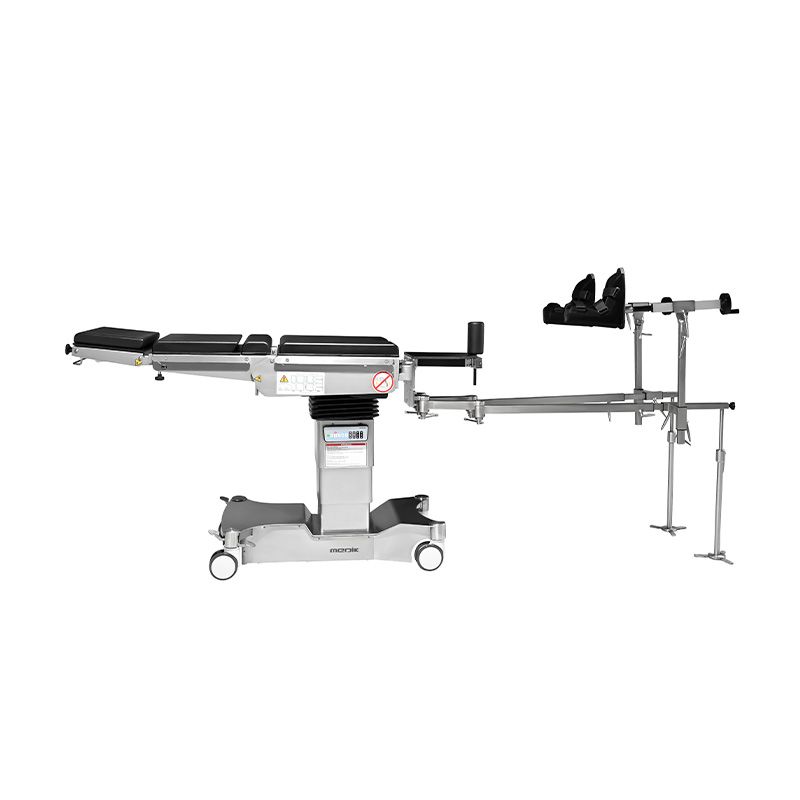

Made of stainless steel and with double joints, the YA-B104 orthopedic traction extension offers the best performance in terms of durability and adjustment range. It is suitable for C-arms and can provide doctors with the largest field of view due to the air suspending design. The multi-dimensional and multi-angle adjustments of various parts can assist doctors in obtaining the best surgical position.
Main features
- Main part is made of stainless steel, antibacterial, durable, anti-corrosion.
- Dual joint design ,larger adjustment range and wider surgical field of view.
- The boot can be adjusted in various heights, angles and distances to provide the best surgical position.
- The traction mechanism has a precise scale display.
- Equipped with an auxiliary trolley, it is easy to install and use, and is suitable for various operating tables.
Technical parameter
| Model | YA-B104 |
| Height adjustment | Can follow the height of surgical table |
| Carbon Fiber Pole Outreach | 360° |
| Traction stroke | ≥200mm |
| Horizontal movement range of knee support | ≥550mm |
| Vertical angle adjustment range of traction mechanism | 50°~140° |
| Overall size: | 1800*350mm (Width and height can be adjusted to the operating table) |
