Brand: Medik
Model: YA-05E
Certificate: CE/ ISO
Overall Size: 2060*550*700-1000mm

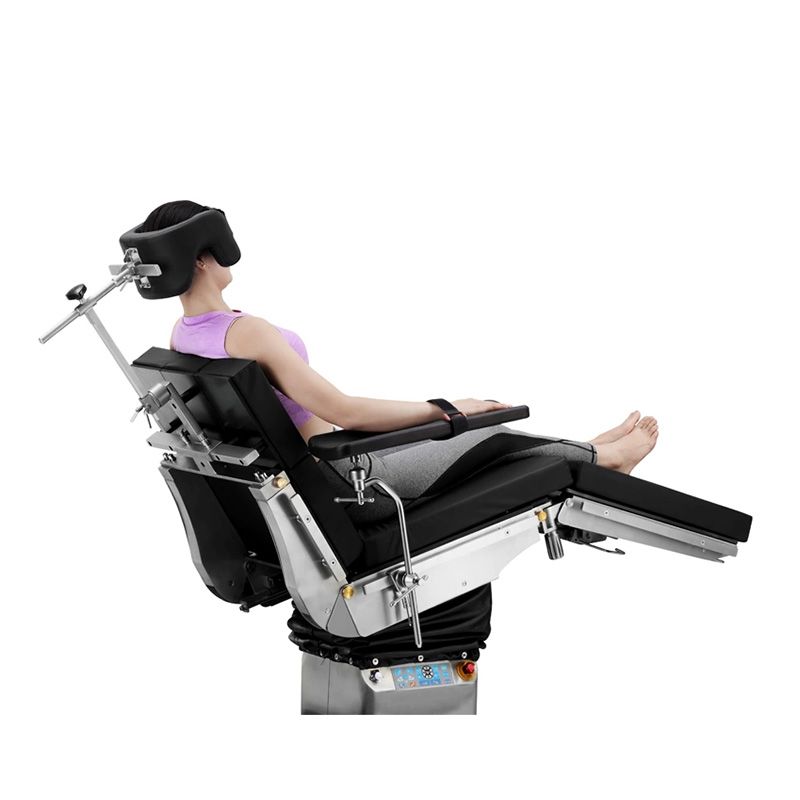

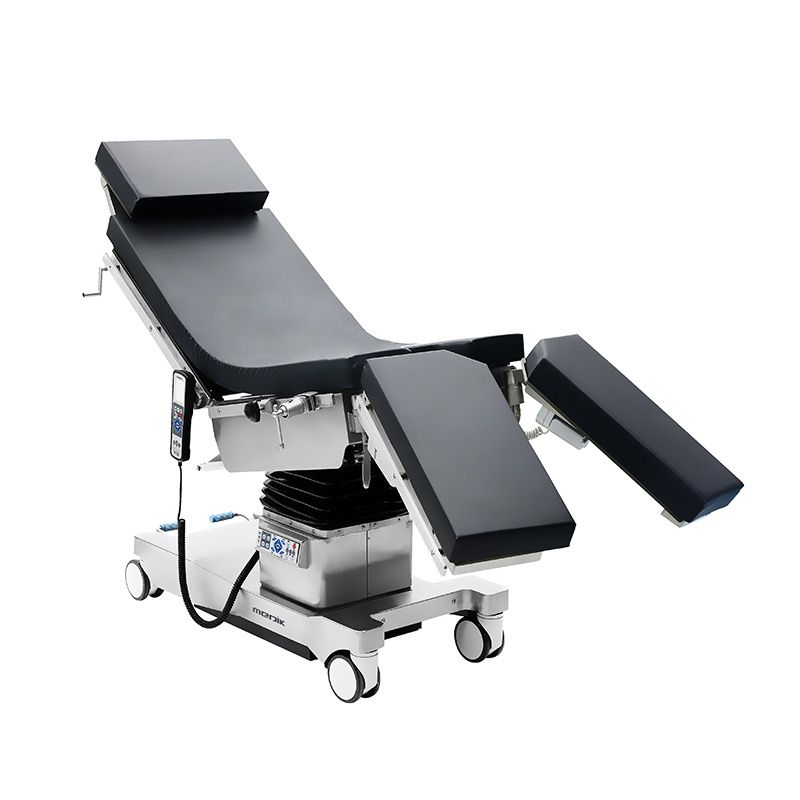

Function: Back section, Foot section, HI-LOW, and Trendelenburg and Reverse,Lateral tilt
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

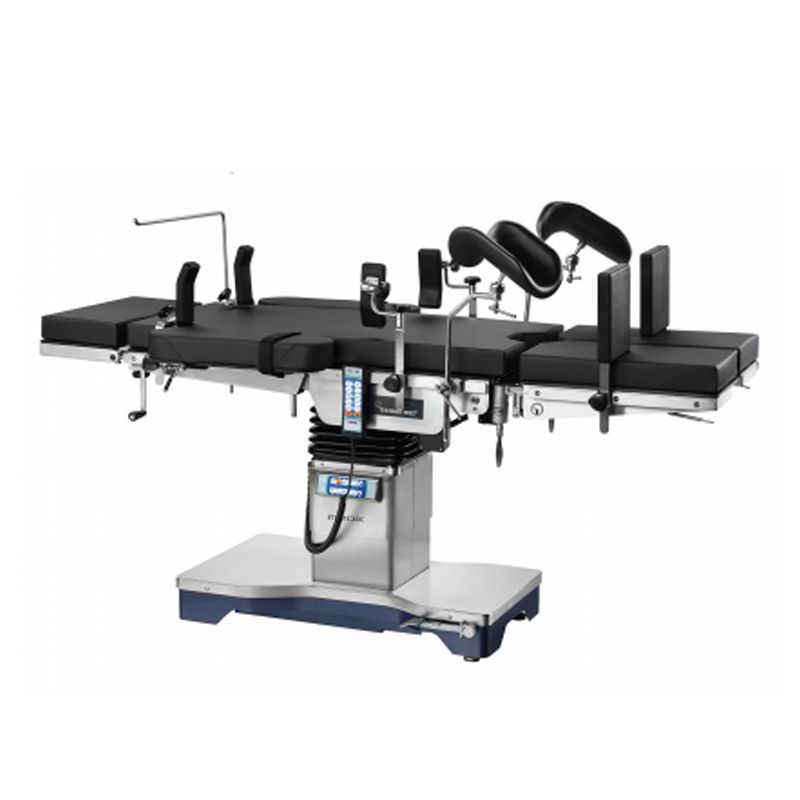

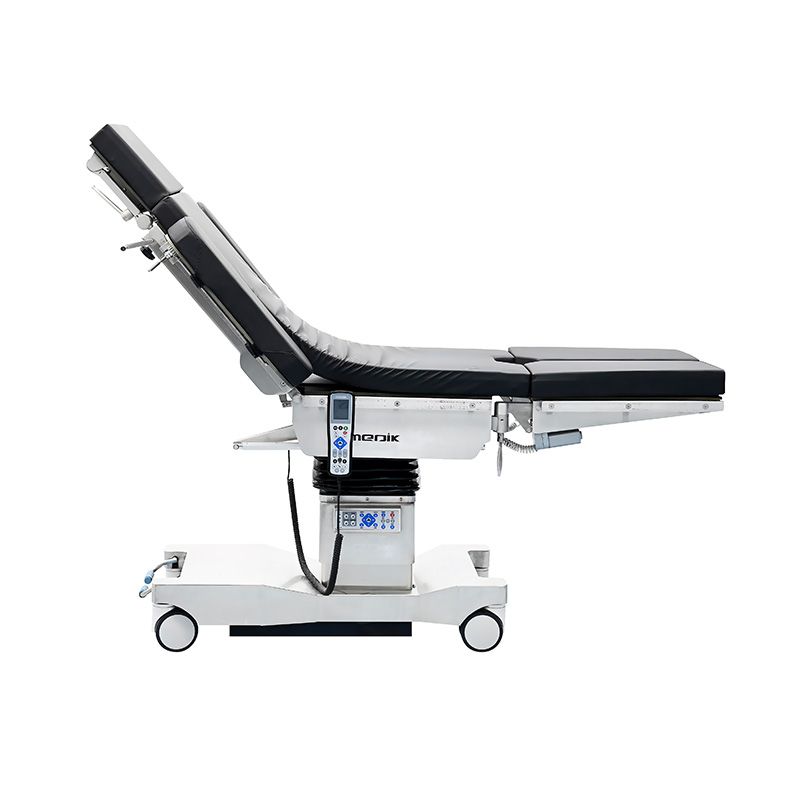

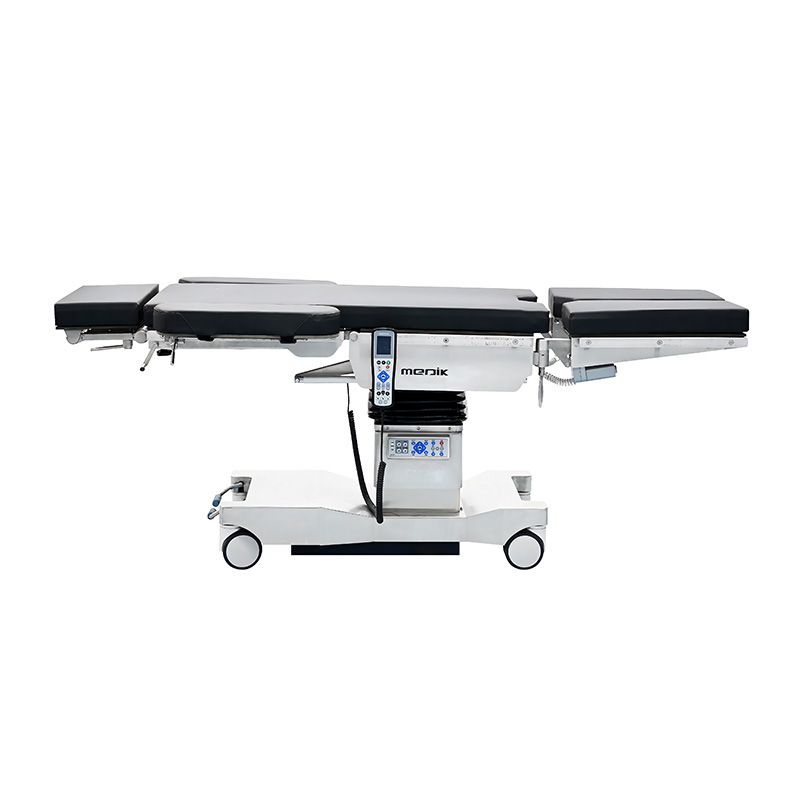

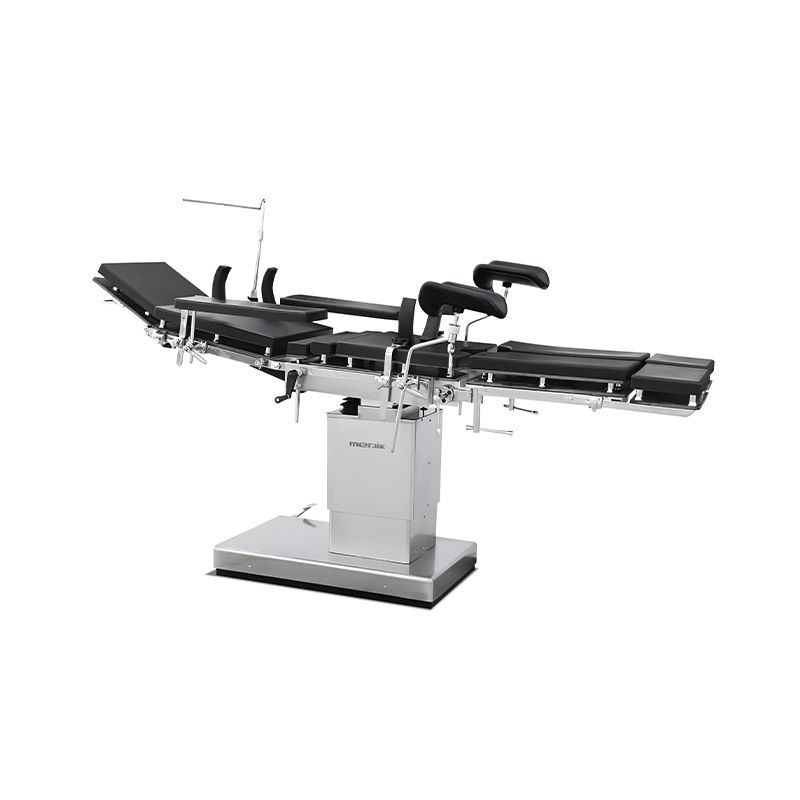

Engineered for increasingly complex surgical scenes, YA-05E comes with intelligent automatic control system satisfying various demands of general surgeries. The structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. 350mm long horizontal sliding that can be suitable for both X-ray and C-arm.
Features
- Four 125mm wheels with centralized brake system

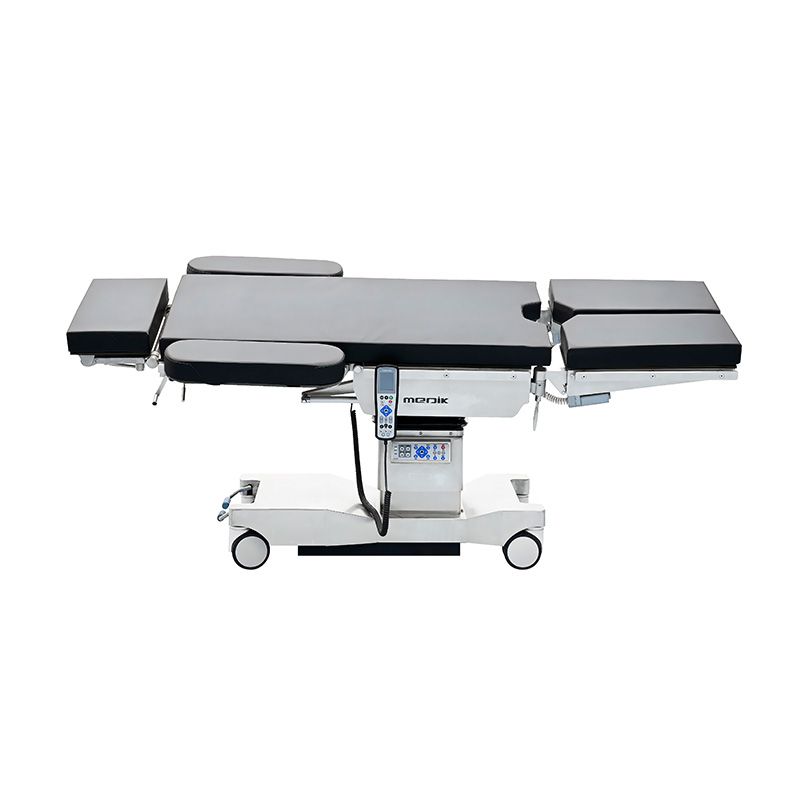

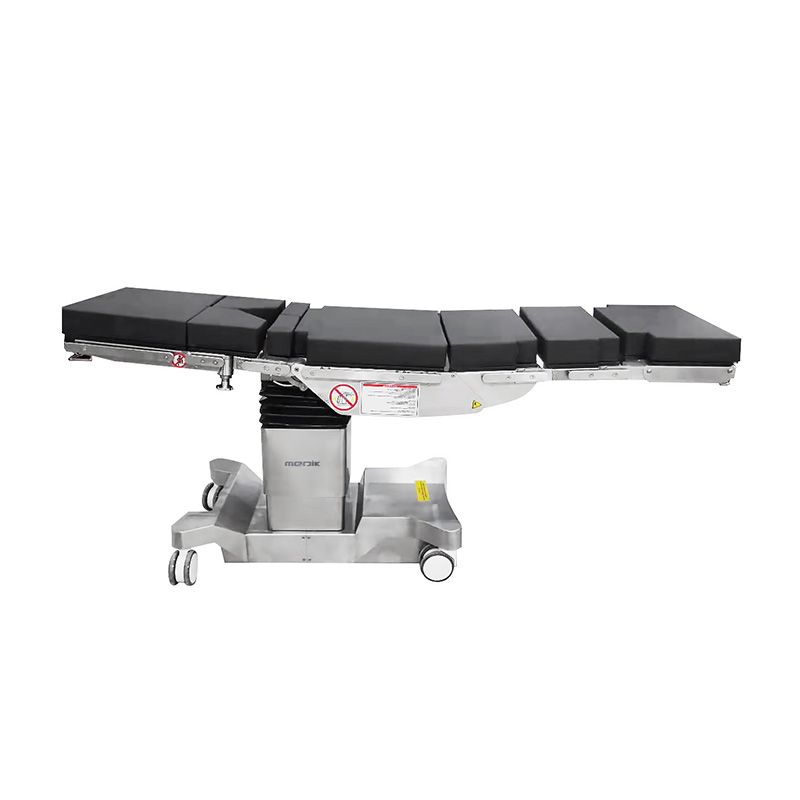

- Divided 6 sections top plate with various patient positions for all kinds of general surgery

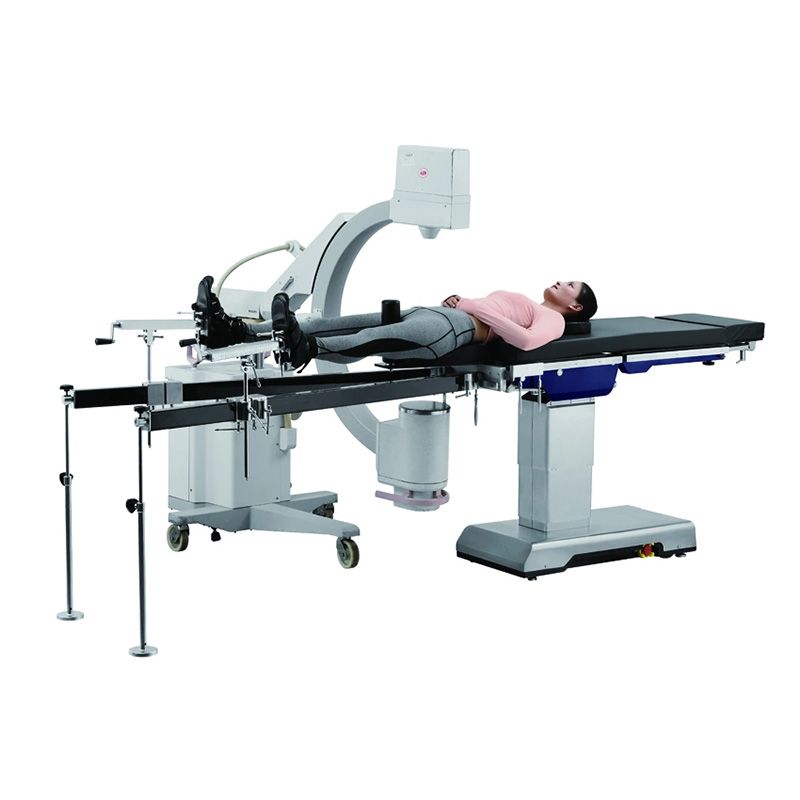

- Horizontal table top super 350mm sliding for C-arm access to entire body

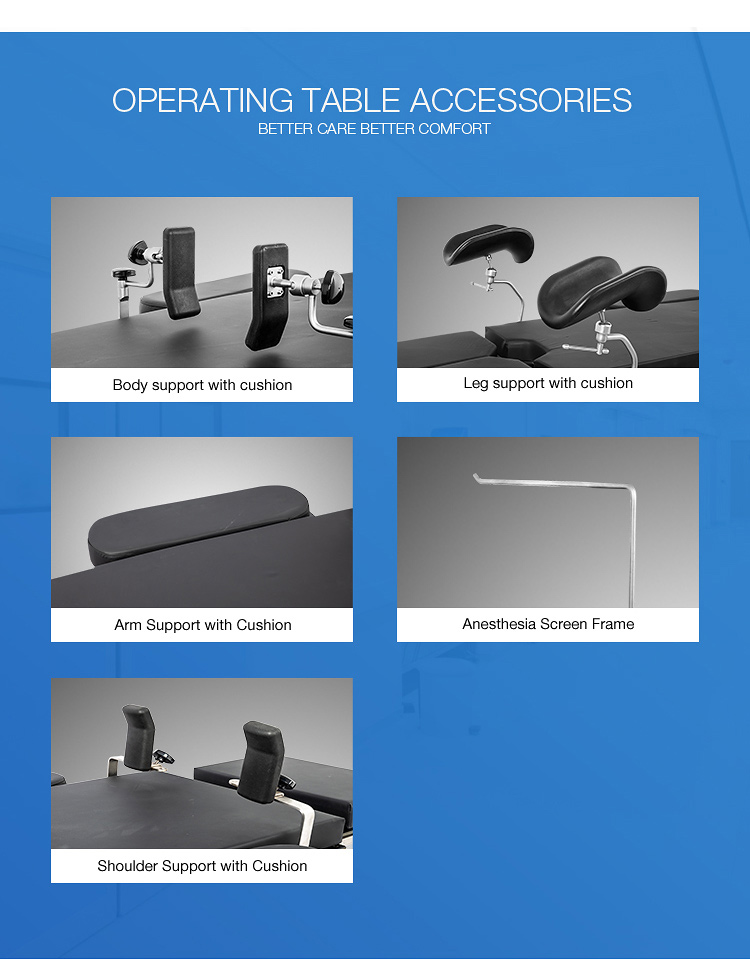

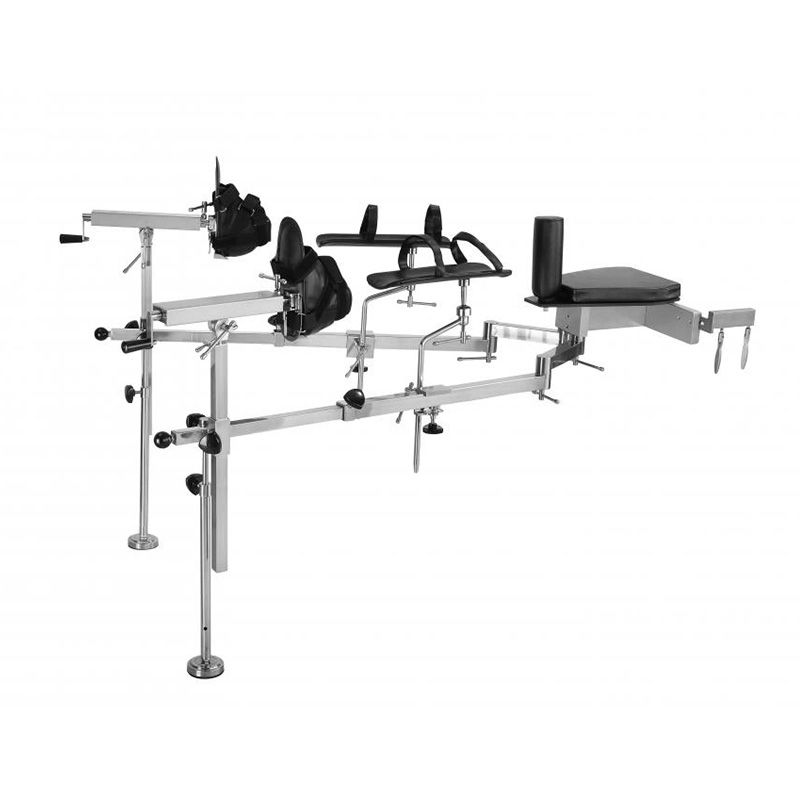

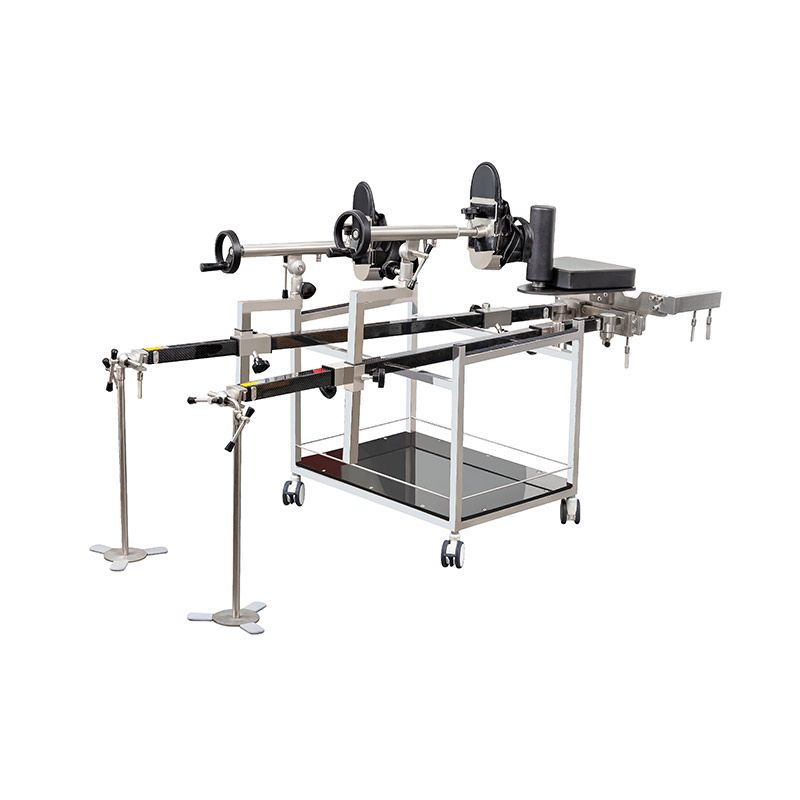

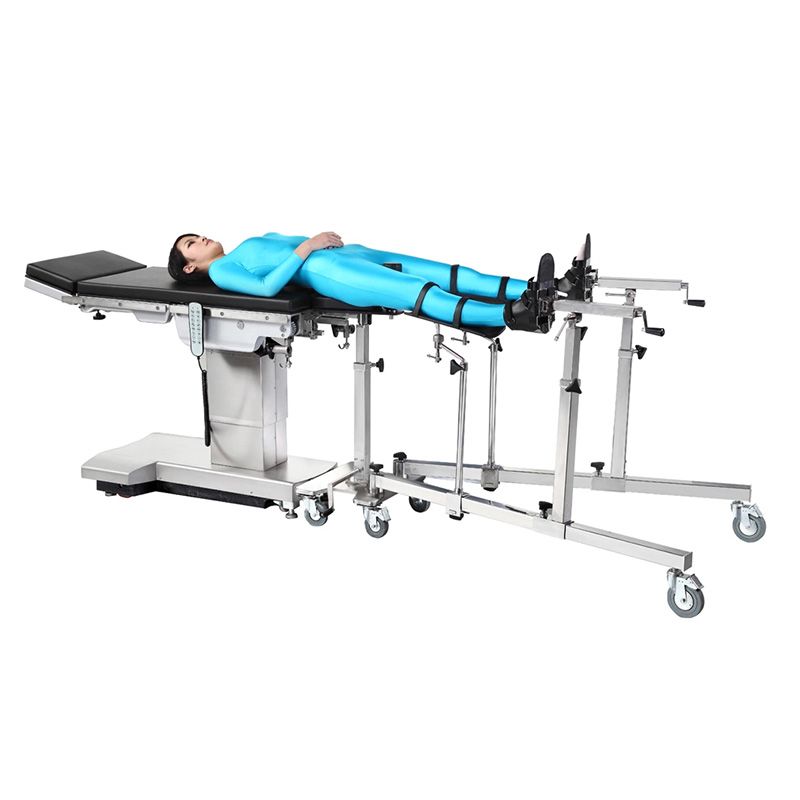

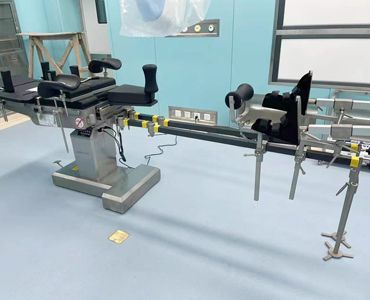

- With access to connect the extension device and traction for orthopedic operations
- Double deck table top for X-ray cassette position
- With a button to operate the table in one step, return the table to a completely horizontal or "zero" position
- With memory function of the movements for the doctor to find the position for certain surgery operation in short time

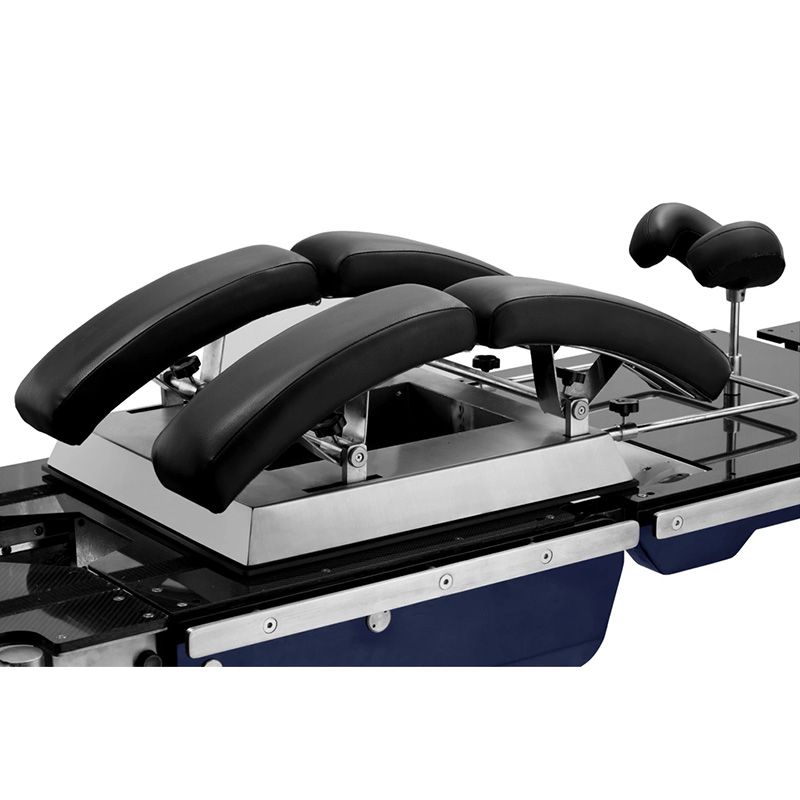

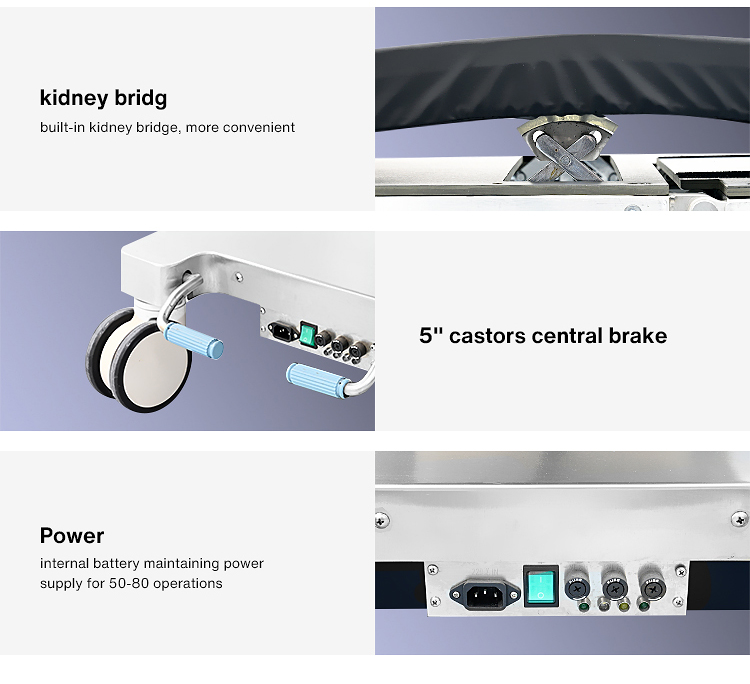

- Built in kidney bridge
- Memory mattress with ultrasonic seamless welding cover to provide great comfort for long time surgery
- Super SS frame and base anti corrosion
- Hand remote control with LED light integrated to the manual control to illuminate it when the operating room is darkened
- Inbuilt column control panel with visiable icon for position operation

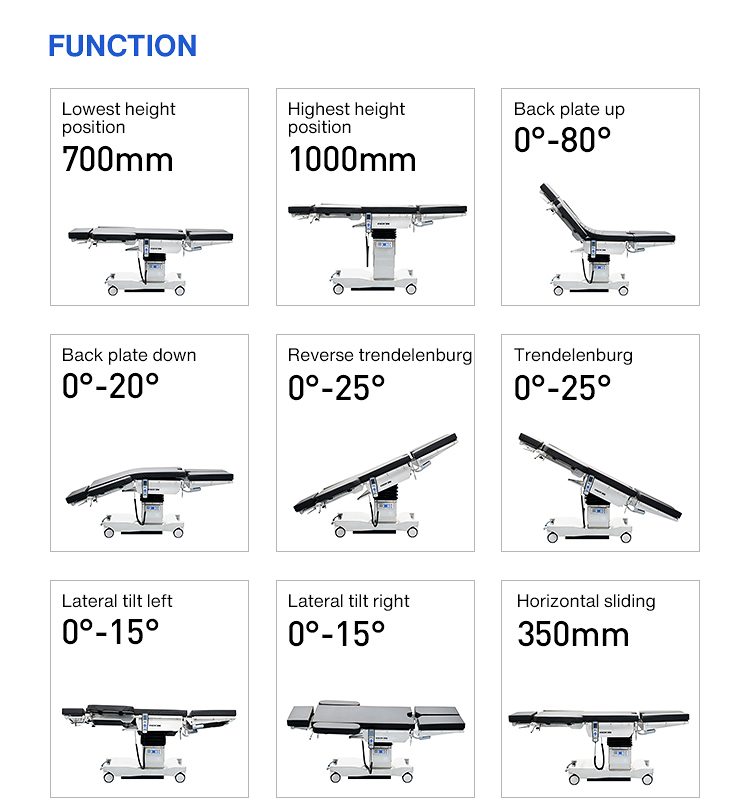

Technical Parameter
| Model | YA-05E |
| Table Length | 2060mm( 81" ) |
| Table Width | 550mm( 21.5" ) |
| Height adjustment | 700-1000mm( 27.5"~39.3" ) |

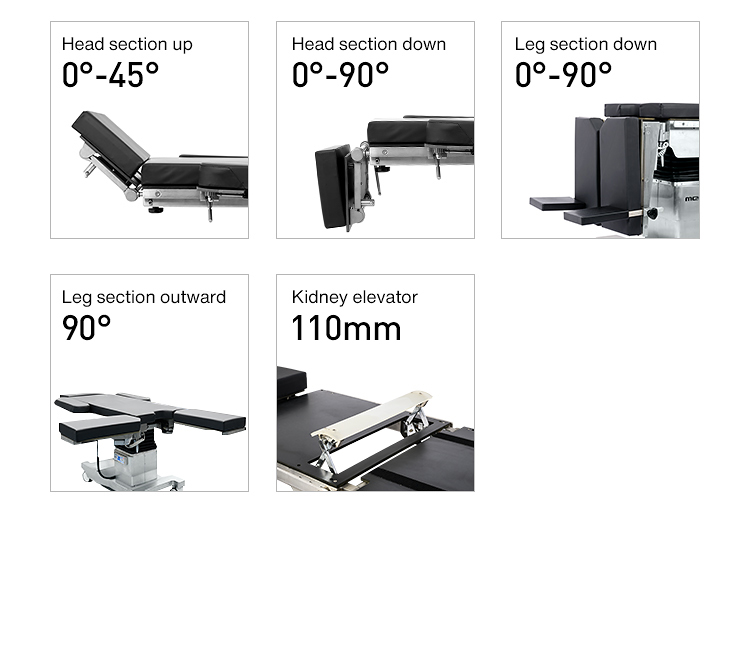

| Head plate adjustment | +40°to -90 |
| Back plate adjustment | +80°to -20° |
| Leg plate adjustment | +15°to -90° |
| Leg plate outward | 90° |
| Trendelenburg | 25° |
| Reverse trendelenburg | 25° |
| Lateral Tilt (left/right) | 15°/ 15° |
| Kidney bridge | 110mm( 4.3" ) |
| Sliding | 350mm( 13.7" ) |
| Loading capacity | 250kg(550lb) |
