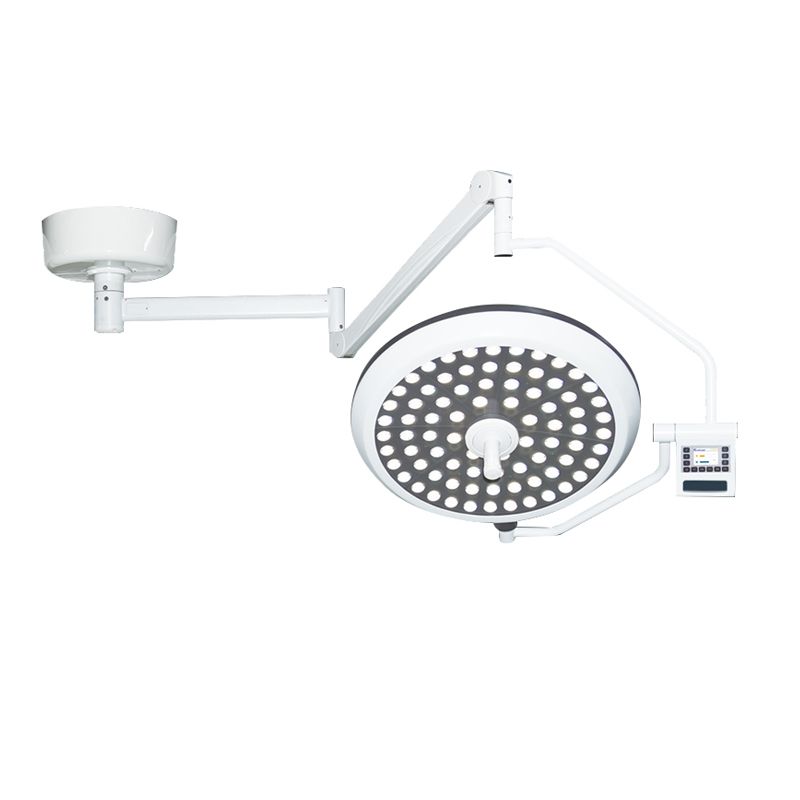

MK-D700Z Ceiling Mount LED Shadowless Operating Light
MK-D700Z Ceiling Mount LED Shadowless Operating Light

Brand: MEDIK

Model: MK-D700Z

illumination: 40000-120000Lx

Color temperature: 4000-5000k(adjustable)

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


The MK-D700Z is a shadowless operating light designed for bright, long-lasting illumination. The light provides up to 120,000 Lux at maximum intensity and is rated for 50,000 hours of LED life.

Using the onboard LCD touchscreen, clinicians can easily adjust the illumination intensity, color temperature, and Color rendering. The MK-D700ZF is available in multiple configurations to fit your operating room needs.

Main features

- LCD touchscreen operation measures illumination intensity, color temperature, and Color rendering index.

- High efficient and durable OSRAM LED light source without thermal radiation

- Flexible design with PWM step-less dimming and adjustable color temperature

- Switch lighting mode with one click: standard mode, endoscope mode, low light mode

- Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumption

Technical parameter

ModelMK-D700Z
Supply voltageAC110-240V 50/60HZ
Spot diameter120-260mm
illumination40000-120000Lx
Color temperature4000-5000k(adjustable)
Color rendering index≥85
illumination depth≥600mm
Brightness Adjustment1% - 100% (step-less dimming)
LED Lifespan≥50000h
LED Quantity80
LED lamp brandOSRAM
Maximum LED PowerRated 3W, actual use ≤ 1W



//
