Model： MK-D500JL
Light Intensity At (1M)：40,000-160,000Lux
LED Bulb Quantity：42PCS
Bulb Life (HRS)≧50,000
Color Temp (Kelvin)：3800 ~5500K (4Steps Adjustable)
Certificate: CE / ISO
After-sale Service: Online technical support
Warranty: 3-Year on Frame and Welds, and 1-Year on Parts

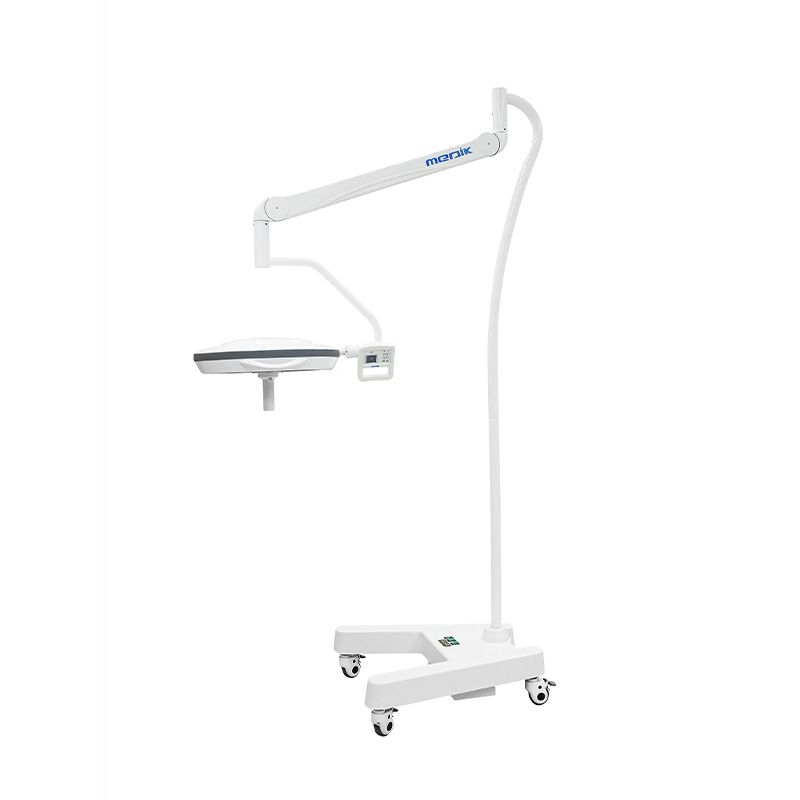

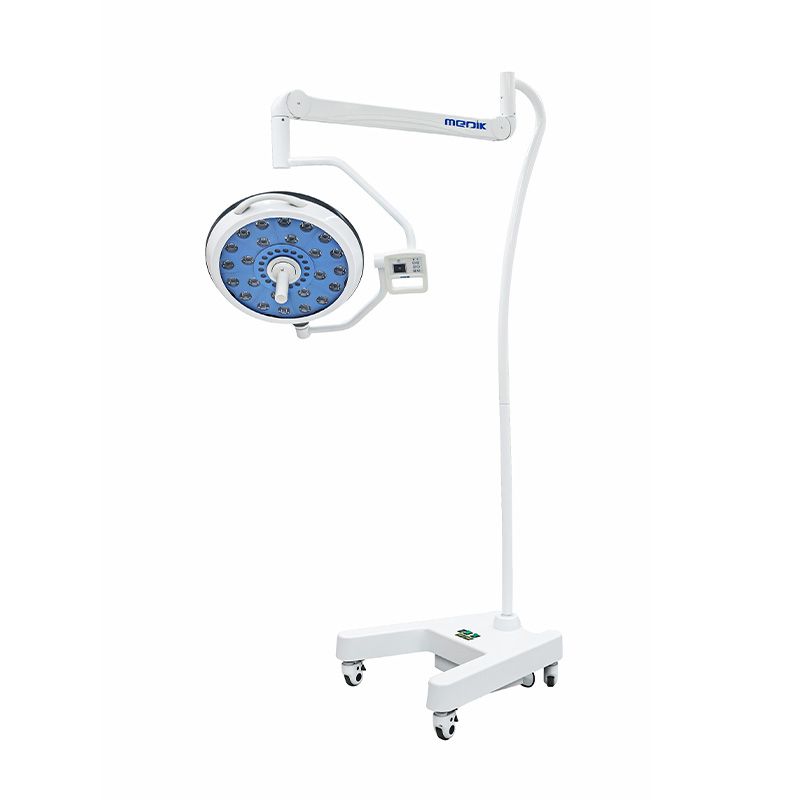

MK-D500JL is an excellent mobile surgical and exam light with a module design. Features with excellent parameters such as lux and color temperature, as well as multi-control modes for different kinds of surgeries, make it suitable for different surgeries and procedures for hospitals.
Main features

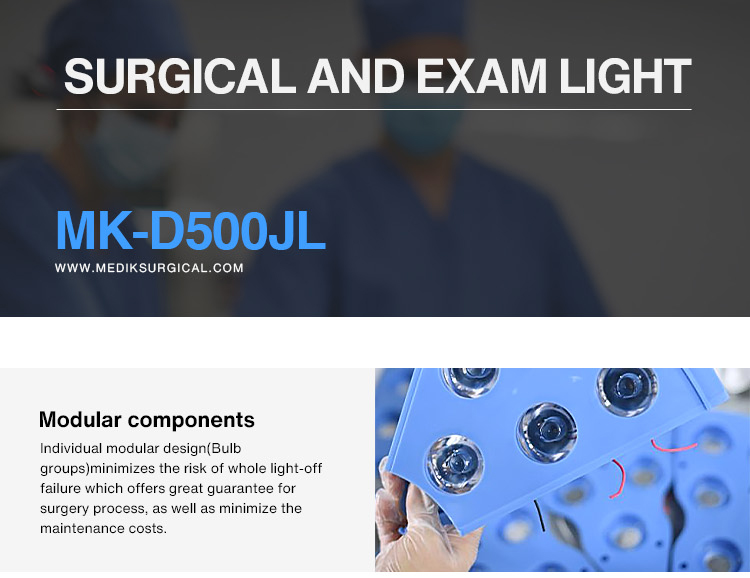

- The independent heat dissipation system and independent opticalunitare convenient for later maintenance
- Independent maintenance can be realized without disassembling other irrelevant units during maintenance.
- Ultra-thin hollow-shaped lamp head, good laminar flow penetration effect.
- Manually adjust the spot to meet the needs of the size of the spot irradiation area.
- The constant current drive design is adopted to keep the working current in a stable state forever, greatly prolonging the service life.

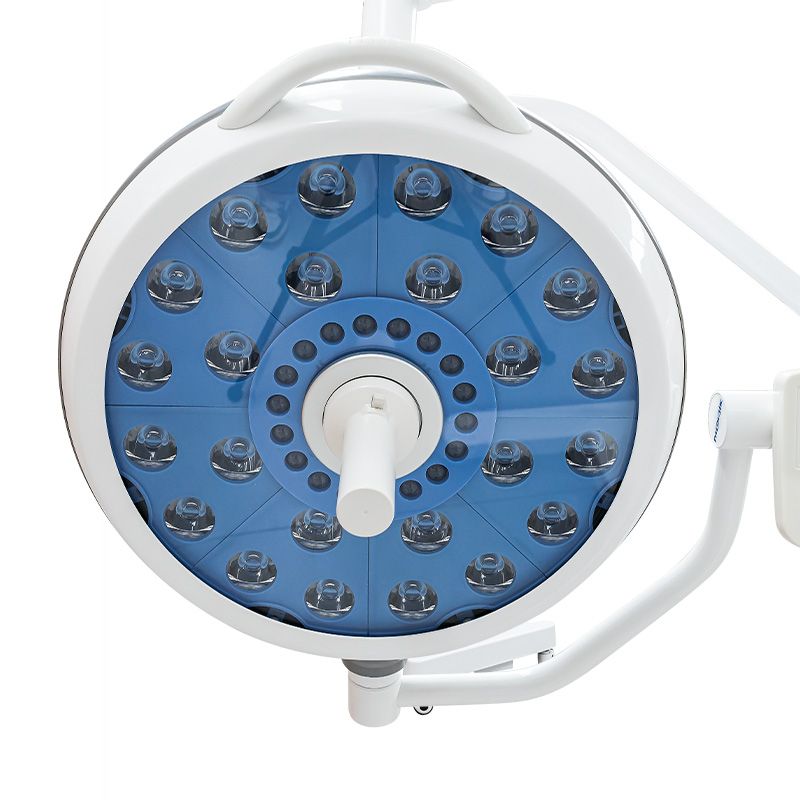

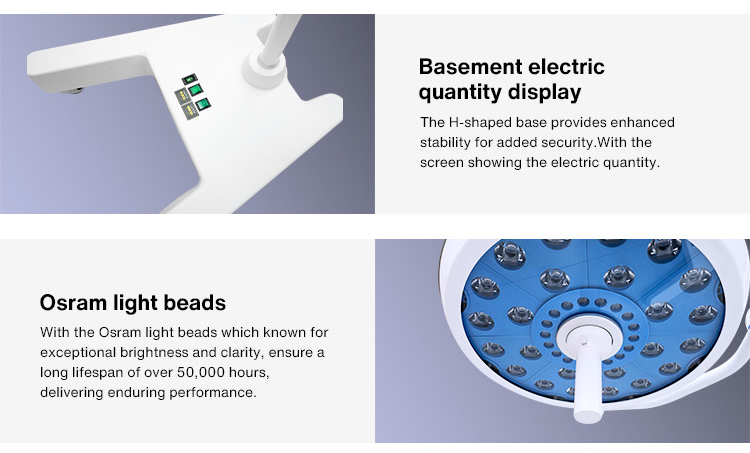

- With the Osram light beads, ensure a long lifespan of over 50,000 hours, delivering enduring performance.
Technical parameter
| Model | MK-D500JL |
| Illuminance at a distance of 1 m (LUX) | 40,000-160,000 |
| Adjustable brightness | 10-100% |
| Lamp head diameter | 500MM |
| LED quantity | 42pcs |
| Adjustable color temperature | 3800-5500K |
| Color rendering index Ra | 96 |
| Color rendering index R9(Red) | 98 |
| Adjustable light area size | 120-280MM |
| Total radiation flux density | 364W/m2 |

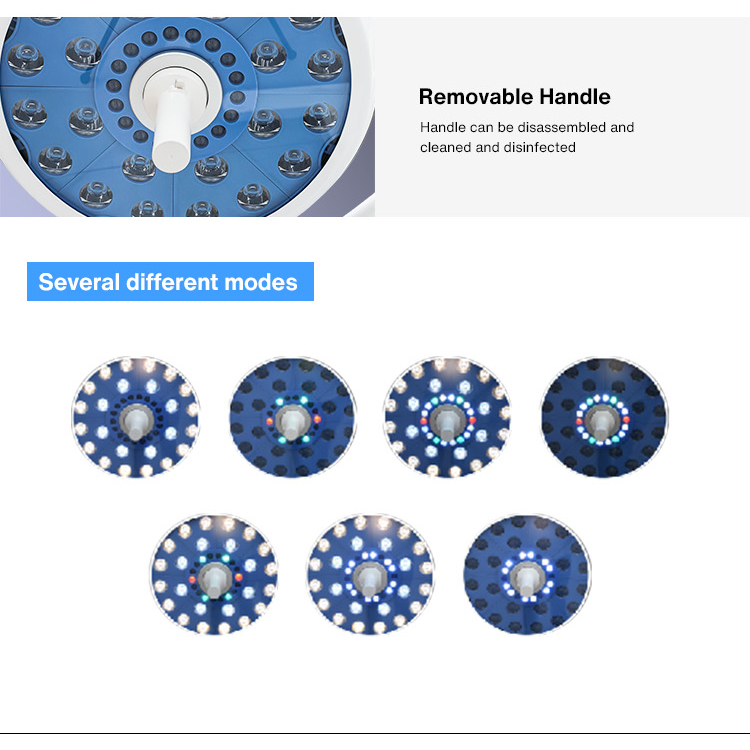

| Endoscopy mode | Yes |
| LEDS endoscopy mode | 18pcs |
| Lighting for Endo mode | 25% |
| LED lifespan | 80000hours |
| Main material | Aluminum |
| Rotation angle ddl bam | >540° |
| LED bulb power | 1w Each |
| Input power | 400w |

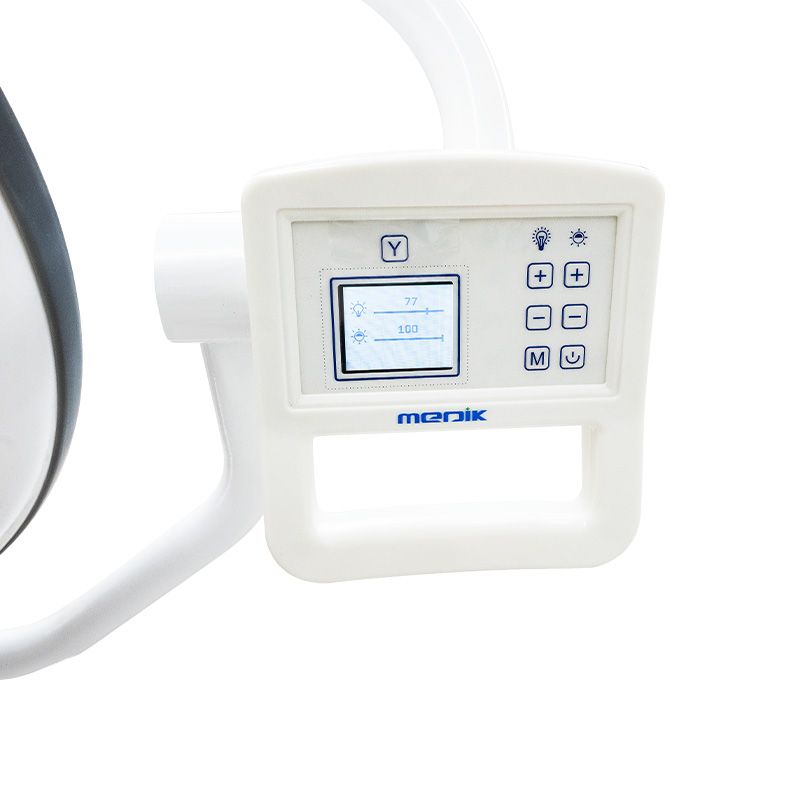

| Operational element | Touch control |
| Lamp head protection degree | LP54+fireproof |
| Illumination depth L1+12 | 1100MM |
| led bulb brand | OSRAM |
| Packaging | 3 wooden boxes |
| LCD touch screen | Optional |
| Backup battery (446 hours) | Optional |
